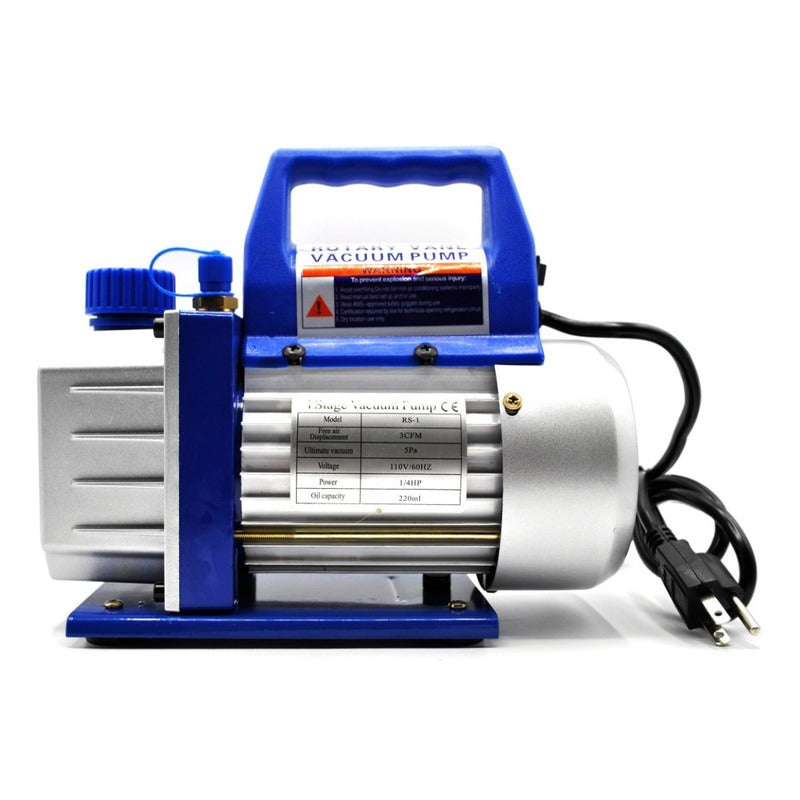

Rotary vane vacuum pump for
cooling and air conditioned equipment
application.
- High efficiency
- Low noise level
- Highly resistant
- Port with exhaust cover
- Direct drive motor
- No maintenance required

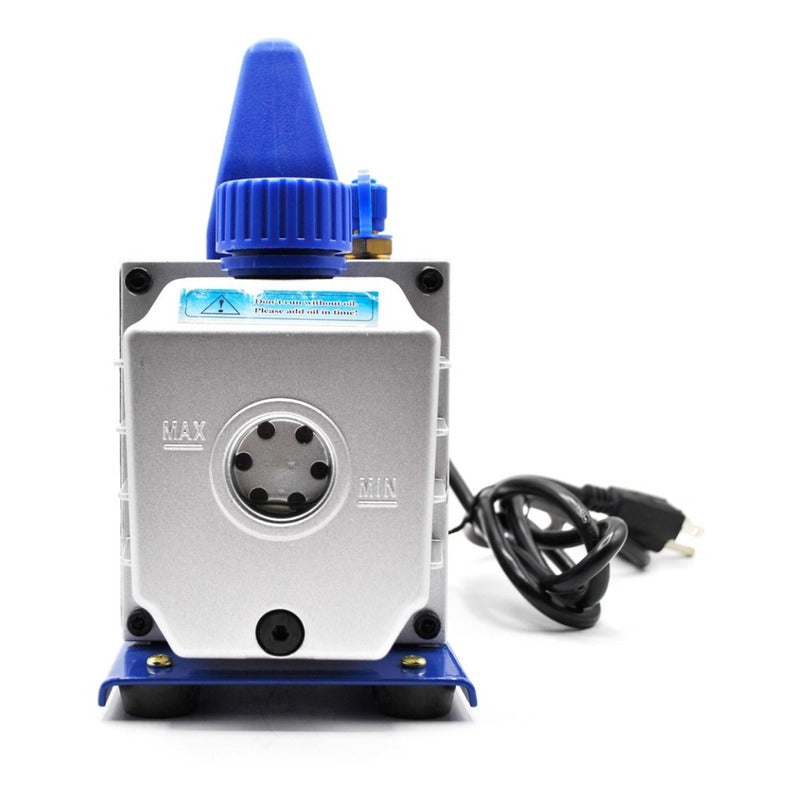

- Oil sight glass for oil level monitoring

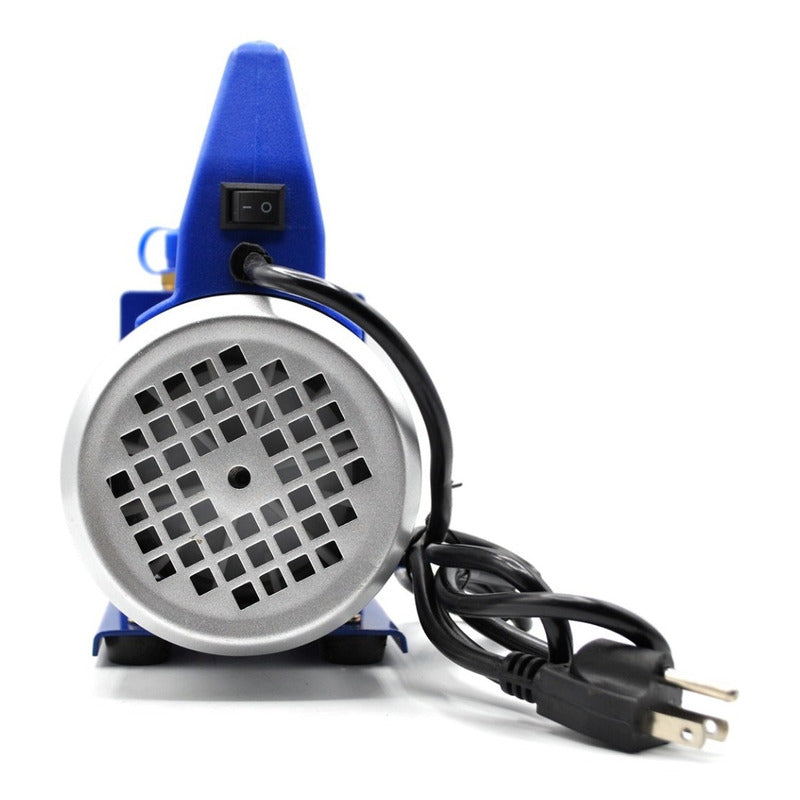

- On/off switch
- Non-slip handle
TECHNICAL PARAMETERS
Operating voltage: 110 VAC/60 Hz
Power: 1/4 H.P.
Flow rate: 3 C.F.M./1 stage
RPM: 3400
Inlet connection: 1/4"
Oil capacity: 210 ml.
Body: Aluminium
Duty cycle: 15 minutes work x 10 minutes rest
Dimensions: 26.6 cm x 10.9 cm x 23.8 cm
Weight: 6 kg.
Vacuum capacity (sea level): -14.21 psi (-736 mmHg)
Vacuum capacity: -14.21 psi (-736 mmHg)
Maximum capacity in A/C equipment: Up to 2 tons.

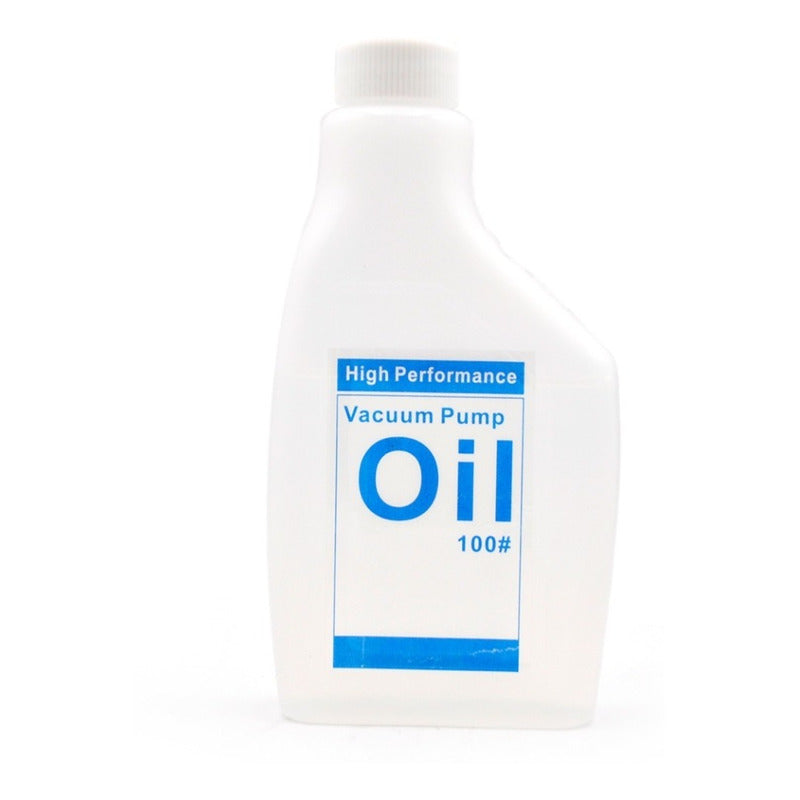

Included accessories: Bottle with oil (200 ml).
