Description
Pneumatic filter-regulator ideal for use in pneumatic/compressor circuits. Its main function is to separate airborne particles and maintain constant operating pressure despite fluctuations in the inlet pressure line.

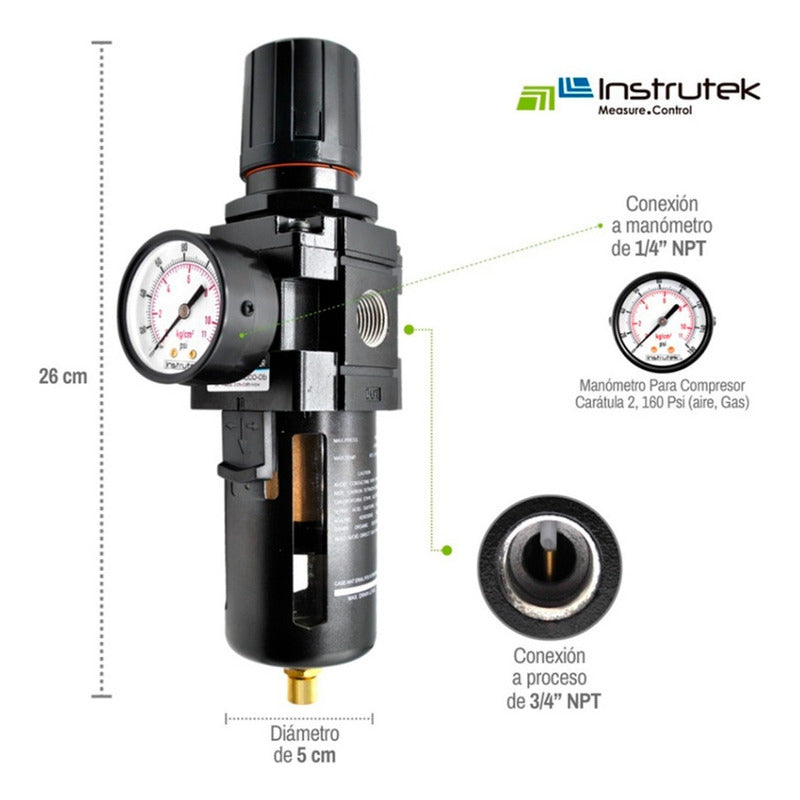

Die-cast aluminum body, 3/4” line connections and 1/4” gauge connection, maximum supported pressure up to 145 psi (maximum working pressure 120 psi), ambient and fluid temperature 5º to 60º Celsius, filtration precision 25 microns, polycarbonate bowl.
OTHER MEASURES AVAILABLE:
1/4”
3/8"
1/2"
1”
