Description
Premium glycerin-filled pressure gauge with a 60 Psi (4 kg/cm²) dual scale, designed to ensure accuracy and durability in a wide variety of industrial applications.

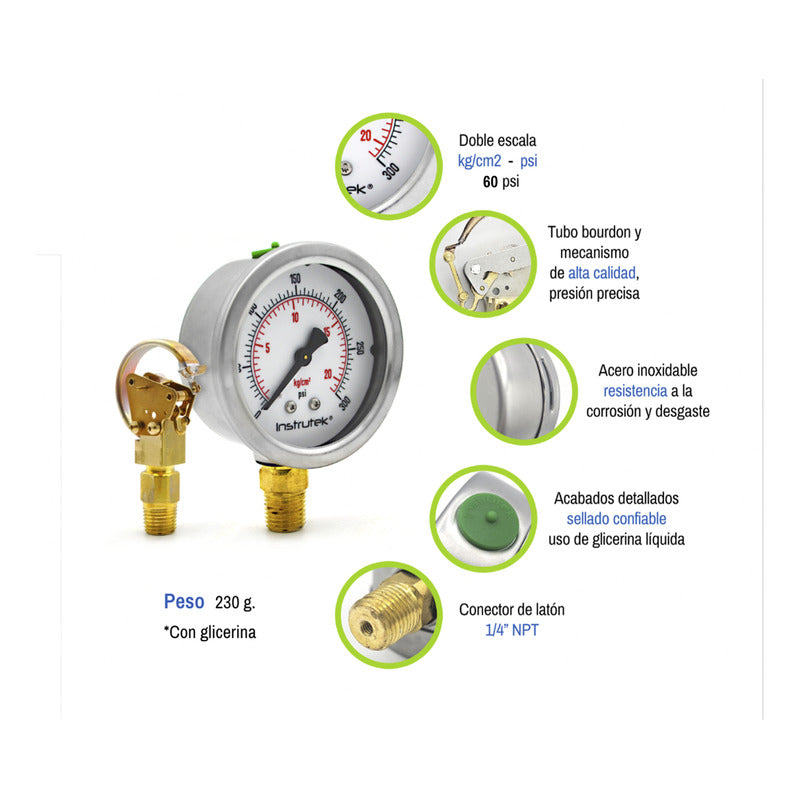

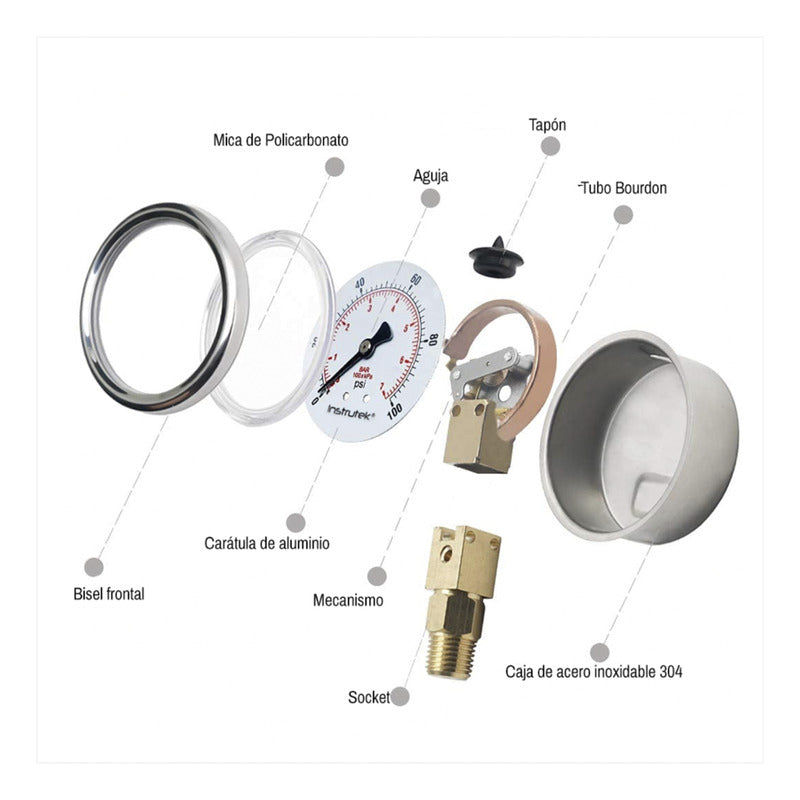

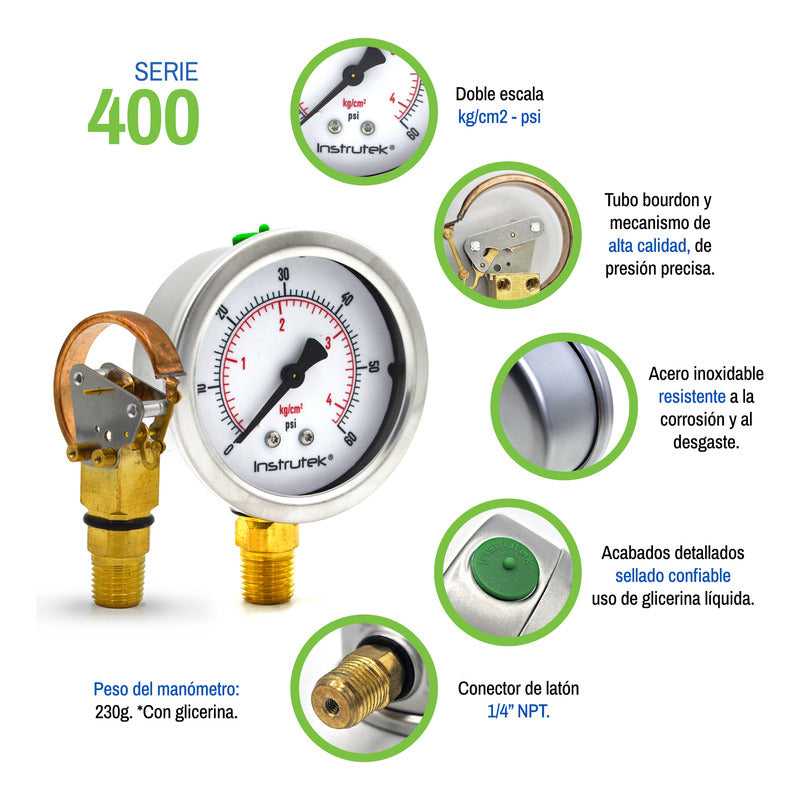

Constructed from high-quality stainless steel, this pressure gauge features a 2.5-inch dial and a 1/4" NPT bottom connection. The UV-resistant polycarbonate window ensures exceptional durability in harsh environments. The internal mechanism is comprised of brass parts, while the Type "C" Bourdon tube is made of phosphor bronze, ensuring an accuracy of ±1.6% across the full scale.

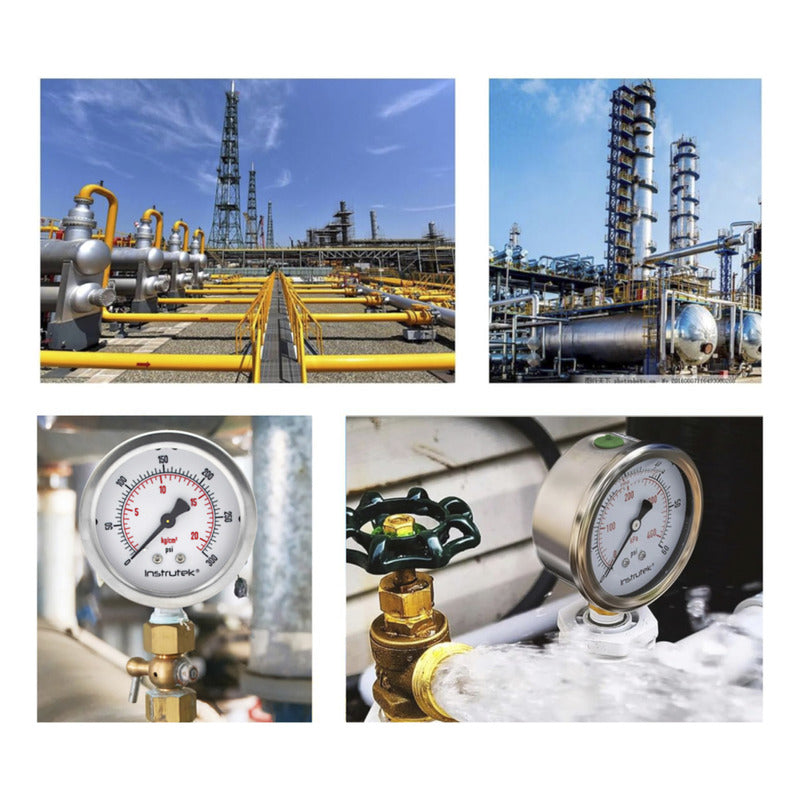

This pressure gauge is ideal for a variety of industries, including automotive, construction, hydraulic and pneumatic systems, power generation, and water management, providing reliable performance in every application.
Specs:

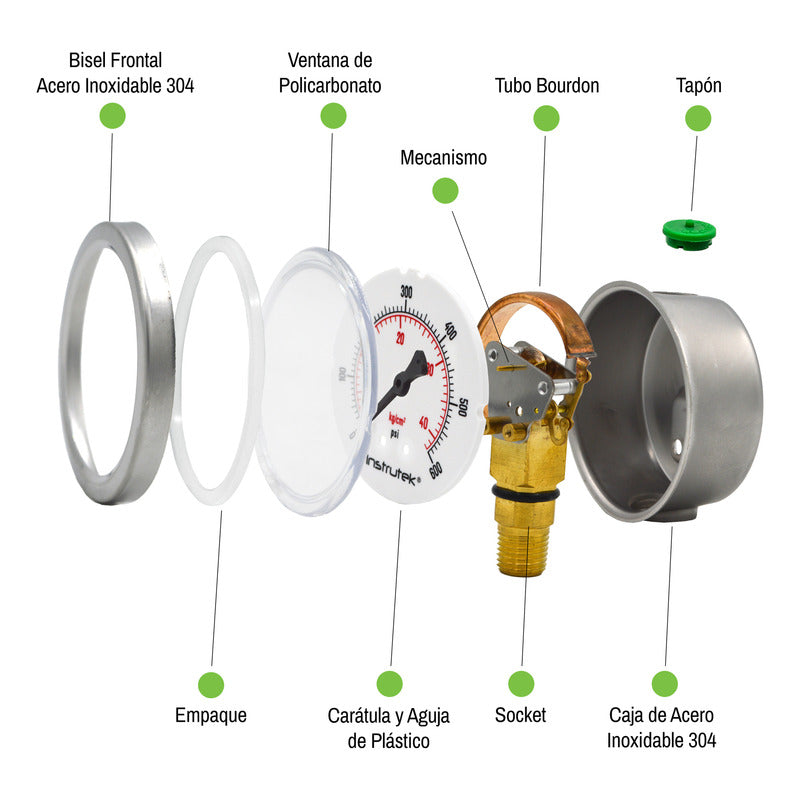

-.Case and bezel made of 304 stainless steel.
-.Window made of polycarbonate.
-.Accuracy of ± 1.6% of full scale.
-.Bourdon tube type "C" made of phosphor bronze.
-.1/4" connection with NPT thread made of brass.
-.UV-resistant white aluminum cover.
-.Black painted aluminum needle.
-.Available in glycerin-filled or dry versions, depending on customer needs.
OTHER RANGES AVAILABLE:
30 Psi
100 Psi
160 Psi
200 Psi
300 Psi
400 Psi
600 Psi
1000 Psi
2000 Psi
3000 Psi
5000 Psi
10000 Psi
