Description

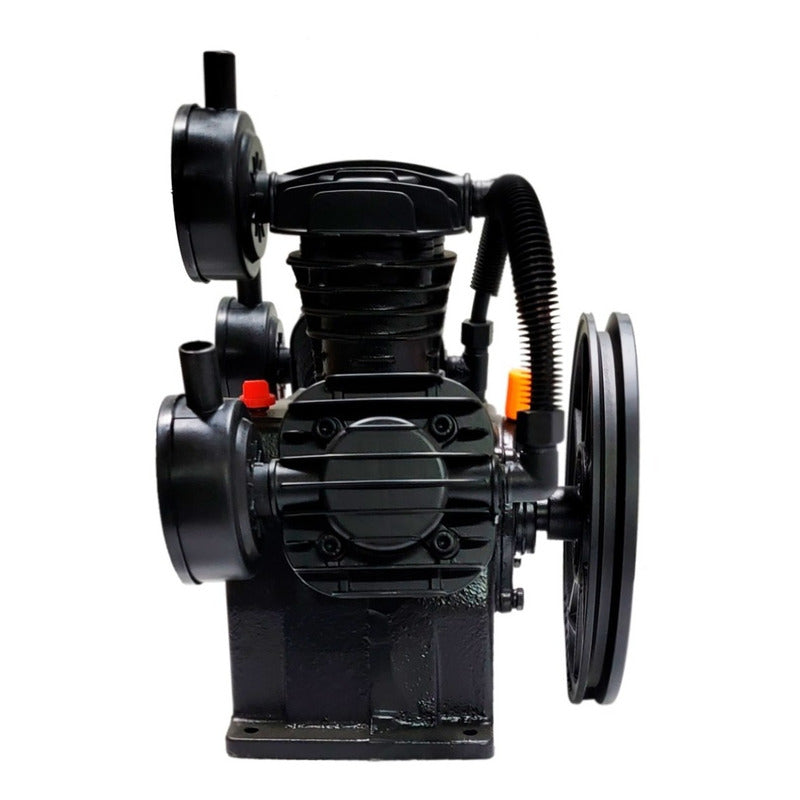

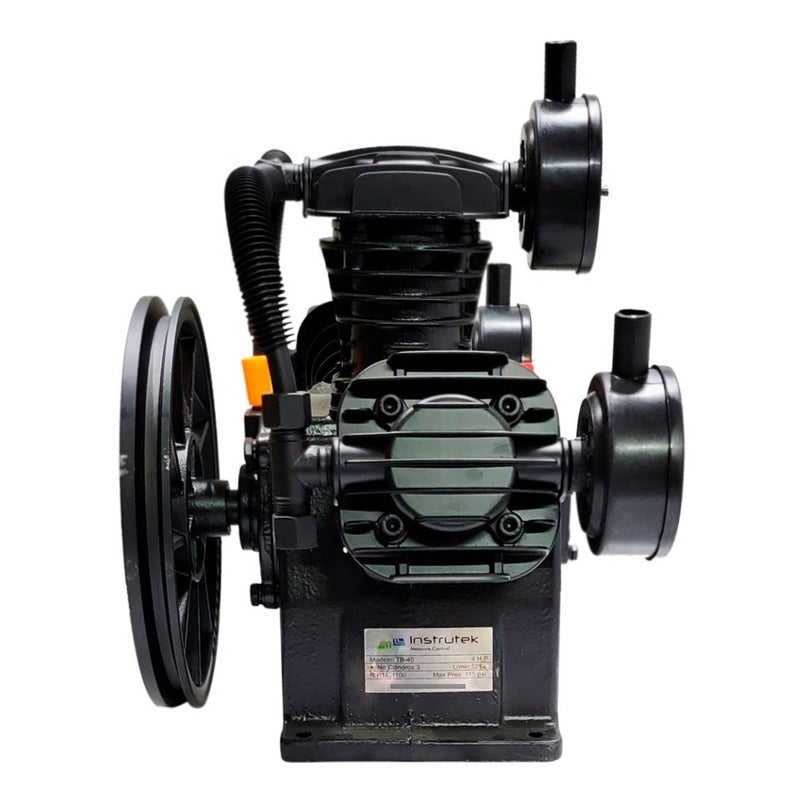

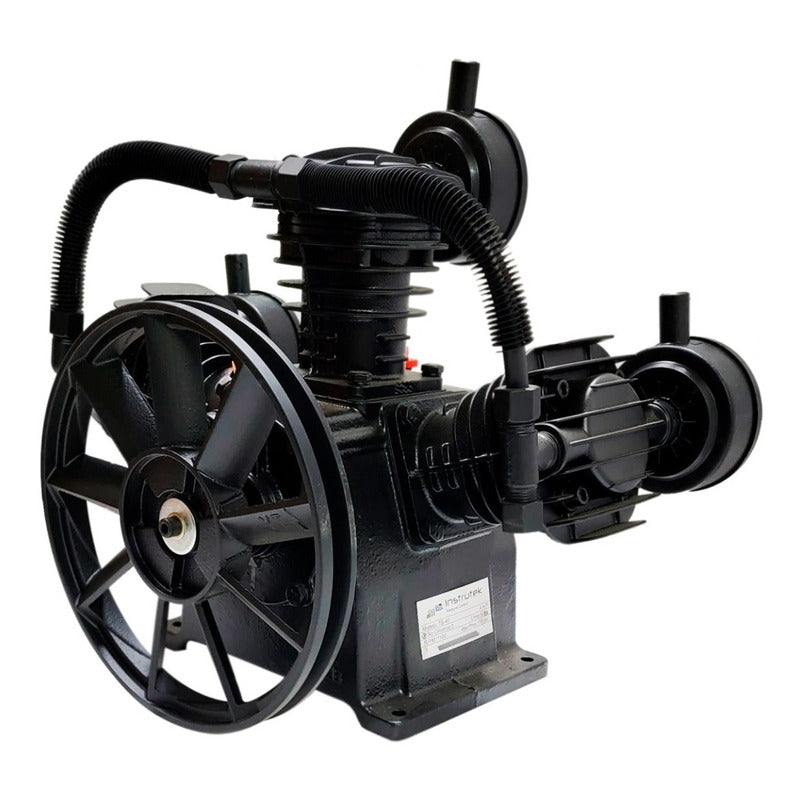

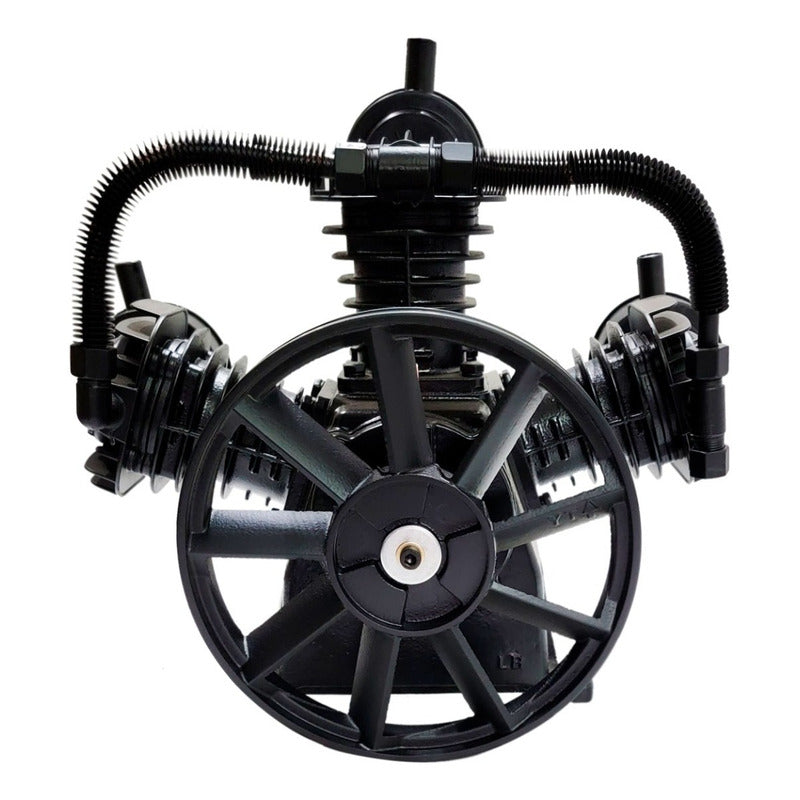

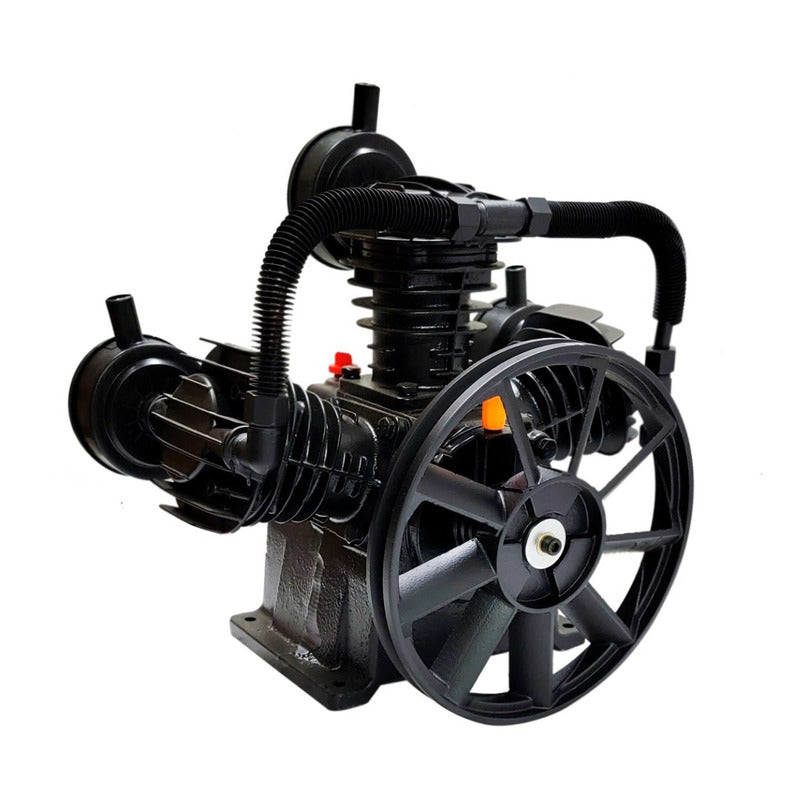

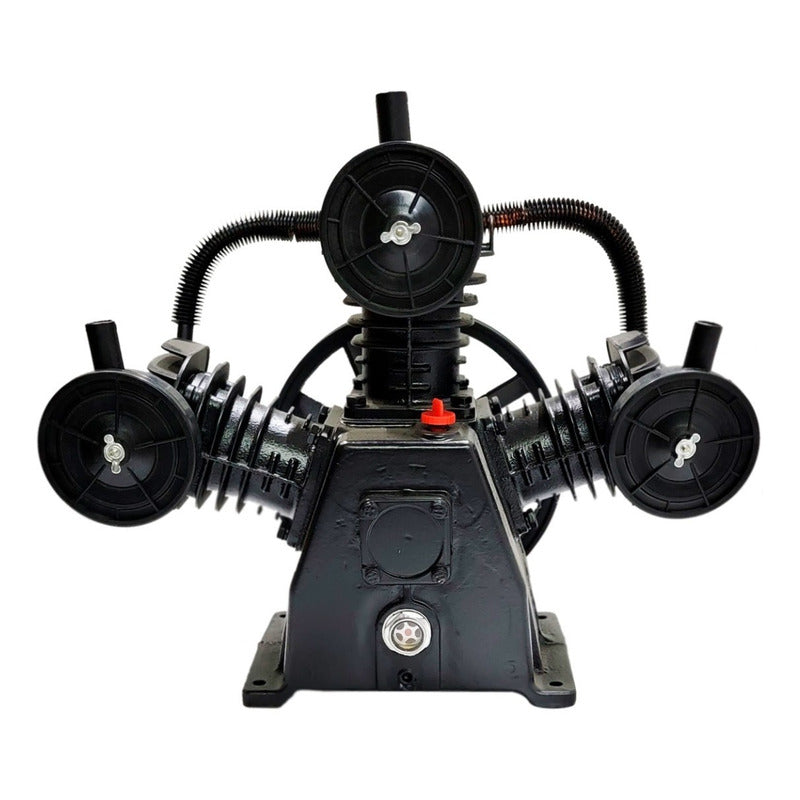

4 HP, 1-stage (low-pressure) air pump or pump head. Cast iron body.
Ideal for paint shops, carpentry, mechanics, and spray gun and low-pressure pneumatic tool use. Requires 1 1/2 L of oil (not included).

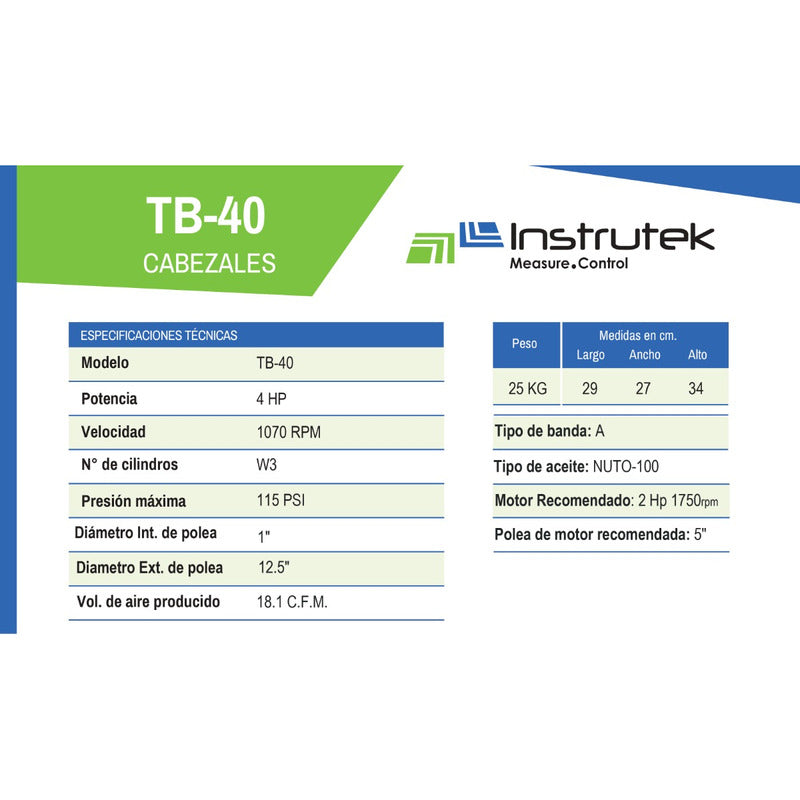

CHARACTERISTICS:
4 HP
3 cylinders
Delivers 512 L/min (18.1 CFM)
Speed of 1070 RPM
Recommended Motor and Pulley for TB-40:
2 HP, 4 Poles at 1750 RPM with a 5" pulley
INCLUDES:
- 3 Intake filter
- Vent
- Pulley
OTHER MODELS AVAILABLE IN LOW PRESSURE:
- TB0375 (3/4” hp) Pulley 7.5”
- TB03 (3/4 hp) 9" Pulley
- TB10 (1 hp)
- TB20 (2 hp)
- TB30 (3 hp)
- TB50 (5 hp)
- TB75 (7.5 hp)
- TB100 (10 hp)
- TH20 (2 hp) in-line pistons
- TH30A (3 hp) in-line pistons
- TH55 (5.5 hp) in-line pistons
OTHER MODELS AVAILABLE IN HIGH PRESSURE:
- TX50C (5 hp)
- TX100C (10 hp)
- TX150C (15 hp)
- TX200C (20 hp)
