Description

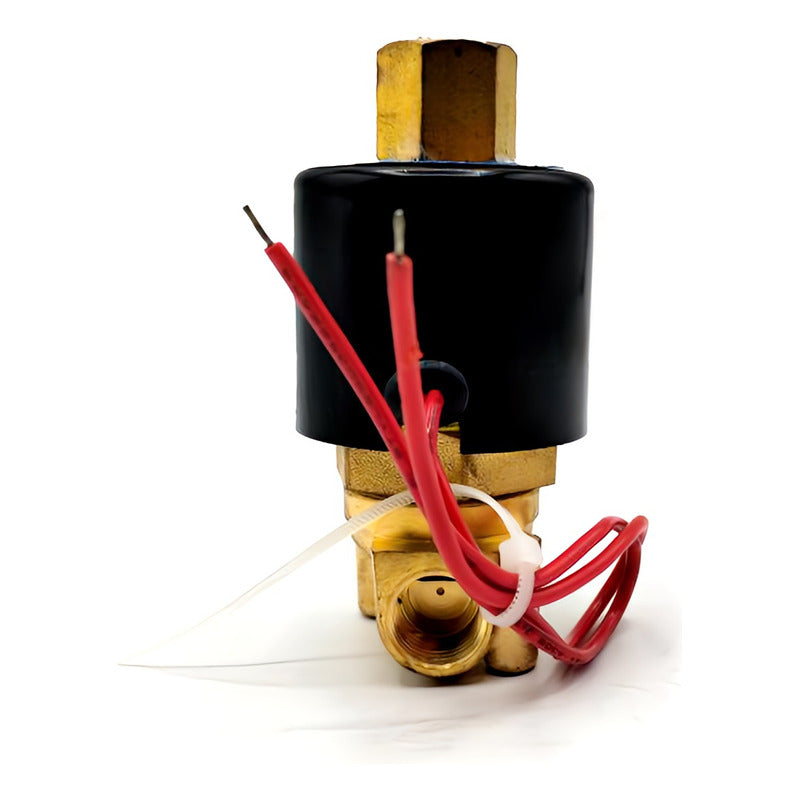

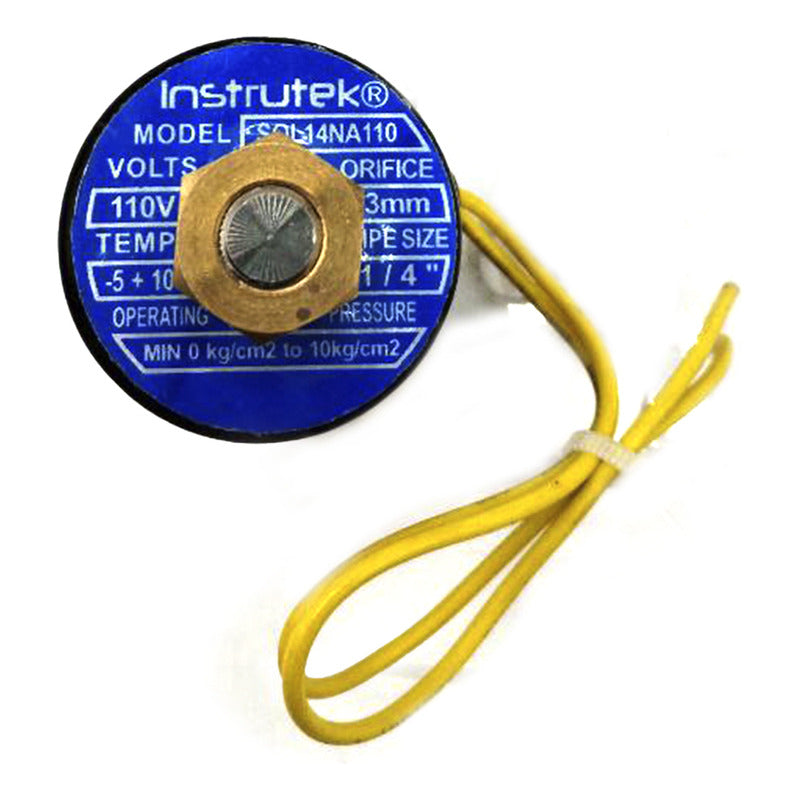

Normally open solenoid valve, also known as electro-valve. Brass body and 1/4" NPT process connection. 110 volts.
It eliminates the need for a person to operate the valve manually. It operates using an electromagnetic solenoid coil to change the state from normally closed to open. When the coil is energized, the valve opens due to the electromagnetic force produced by the pump.
Operating voltage: 110 VAC
Process connection: 1/4" NPT
Type: Normally Open (NO)
Positions: 2 positions - 2 ports
Working fluids: water, air, gas and low viscosity fluids
Body: Brass
Working temperature: -5 to 80 ºC
Pressure range: 0 to 145 psi (0 to 10 kg/cm2)
Power: 2 W
