Description

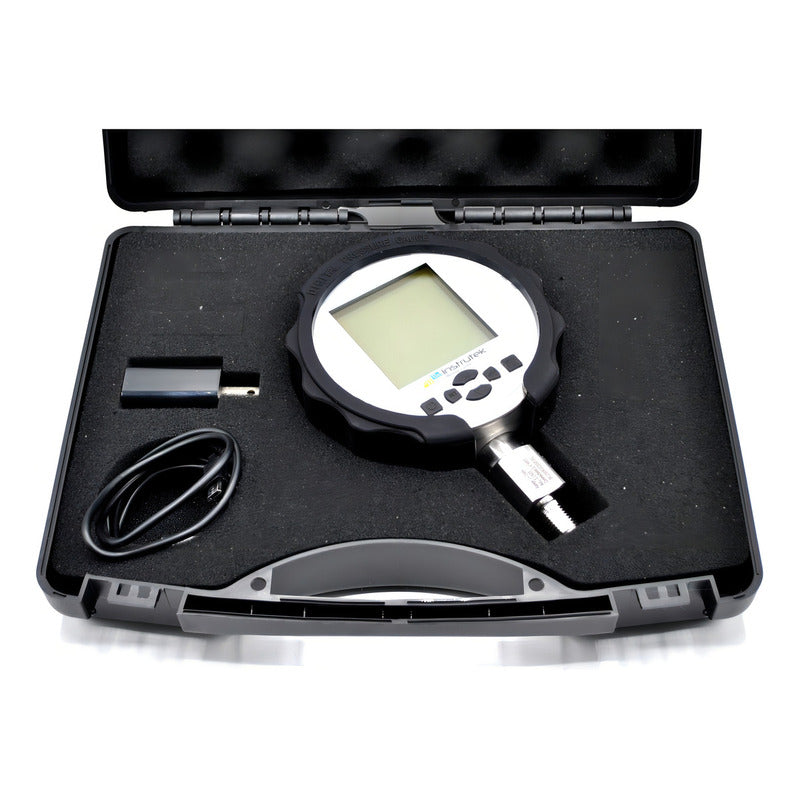

This meter features a 55x55 mm LCD display that is divided into two readings: the main one shows the current pressure, and the auxiliary one can display the temperature, maximum or minimum peak, among other functions.
It displays real-time pressure and can display temperature, maximum and minimum value of reference data.
It has 8 preset pressure units and 5 programmable functions, with buttons to turn the device on and off, change the unit of measurement and set the value to 0, as well as turn the display backlight on and off.

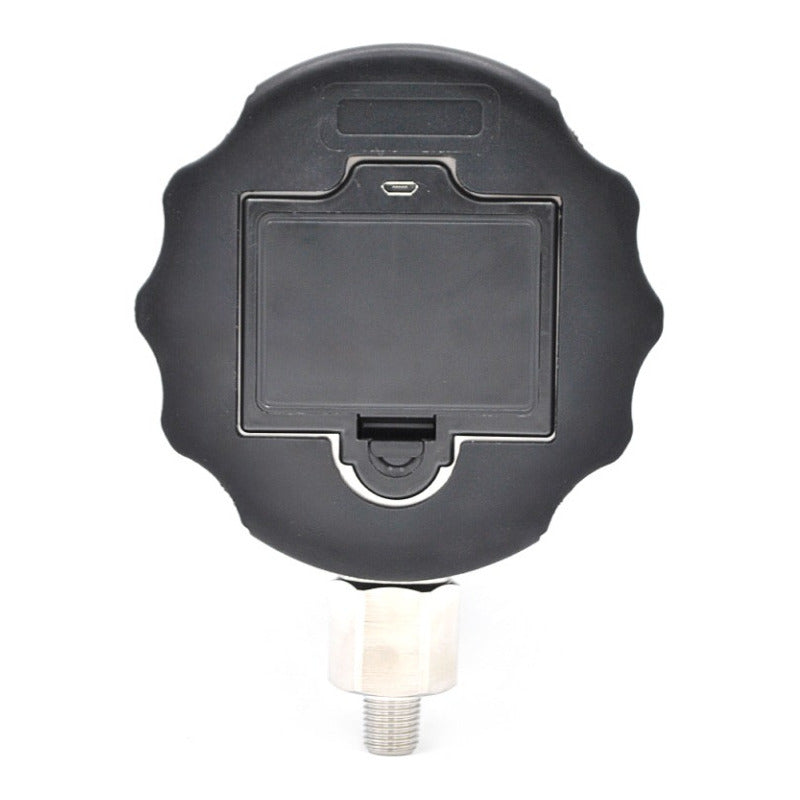

It runs on 3 AA batteries and has a micro USB input, with ultra-low power consumption that allows for a runtime of approximately 3,600 hours.
It includes a high-precision ADC and high-speed microprocessor, with digital design and good vibration resistance.
Made of 304 stainless steel, it is vibration resistant and compatible with gas, liquids, oil and other media non-corrosive to stainless steel.
Features of the digital pressure gauge:
- Maximum pressure of 15 psi
- 304 stainless steel case
- 4" (100mm) dial

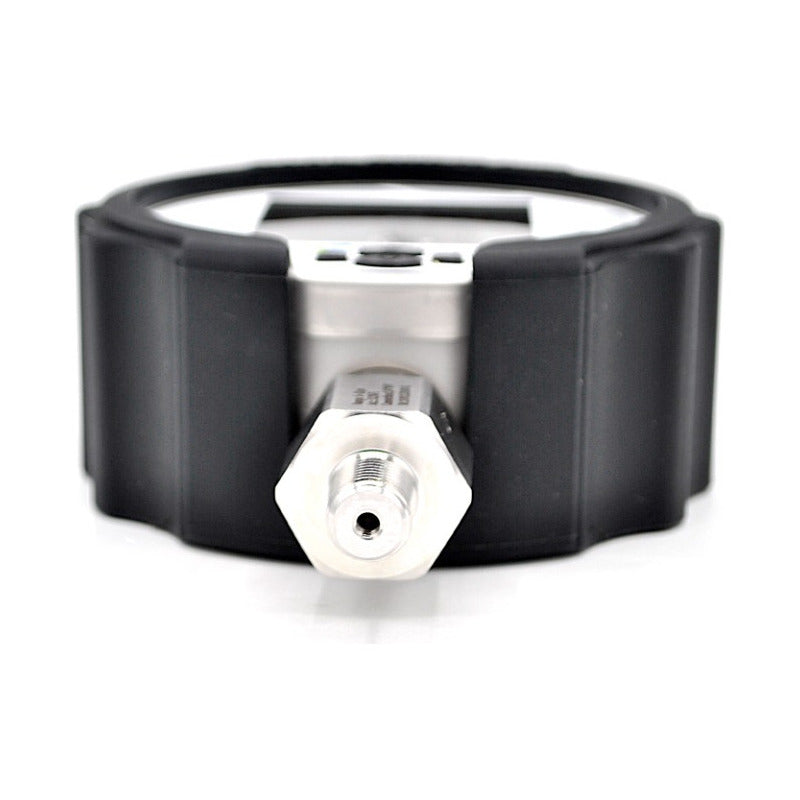

- 1/4" NPT bottom connection in stainless steel
- 5-digit LCD display
- Accuracy of 0.1%
- Compatible with micro USB cable
- Requires 3 AA batteries (not included)
- 8 pressure ranges available
The 5-digit LCD display allows you to select units of measurement such as PSI, MPa, mbar, kPa, kg/cm2, Torr, mmH2O, mmHg, ºC, ºF.
Ask about manufacturing with particular specifications.
