Description
Our differential pressure gauges are designed to measure positive, negative (vacuum) or differential pressure of low pressure air and non-corrosive gases.
Our models are versatile and adaptable to a wide variety of applications. From measuring pressure in fans and blowers to wind speed and resistance in filters, these instruments also monitor gas pressure in furnaces and differential pressure in orifices.
In addition, they are essential in sectors such as microelectronics, aviation, environmental protection, intelligent building, HVAC, food and beverage, and precision electronic processing.
When pressure is applied to both sides of the diaphragm in operation, any difference in pressure causes the diaphragm, the spring to which it is attached, and the magnet attached to the spring to move. The movement of the magnet forces the magnet's helix to rotate to maintain the gap, and the pointer attached to the helix rotates with it.
CHARACTERISTICS :
Pressure range: 0 to 0.25 INH20

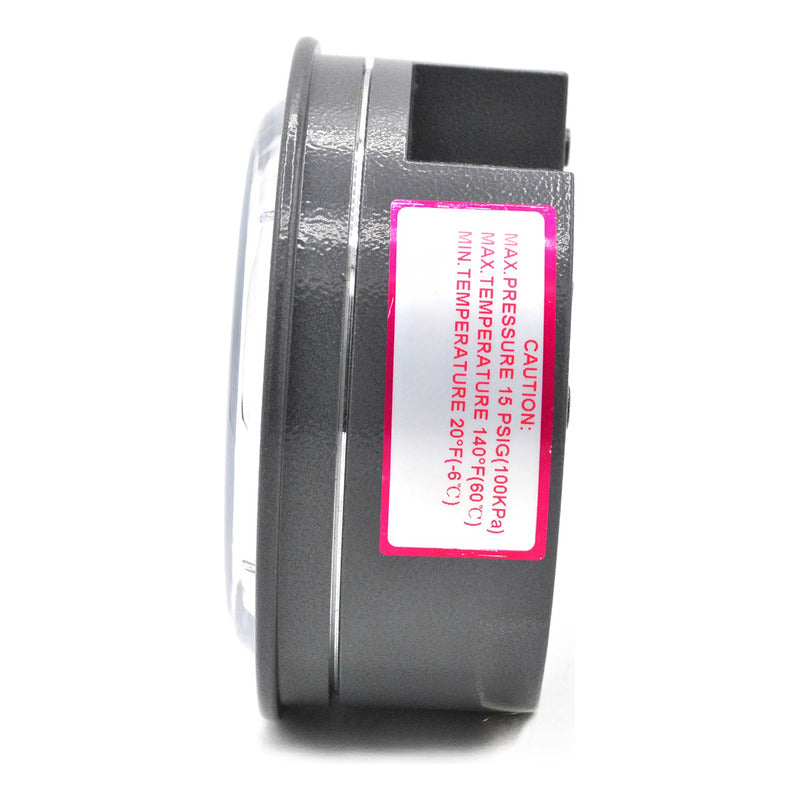

Maximum pressure of 100 kPa
Dial size: 4"

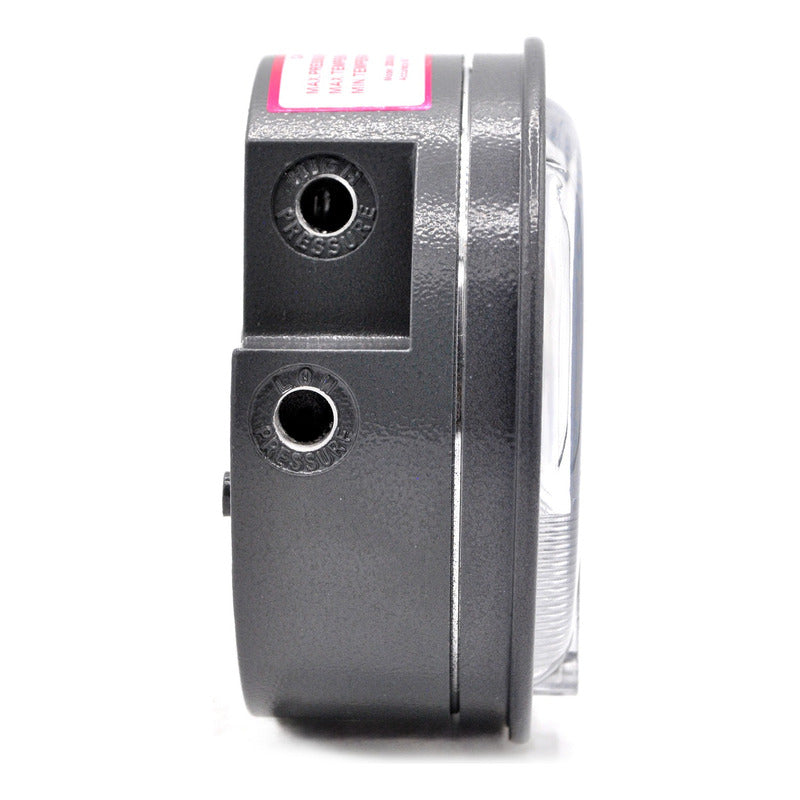

Process Connection: Two 1/8 NPT female high pressure outlets and two 1/8 NPT female low pressure outlets
Clear acrylic window

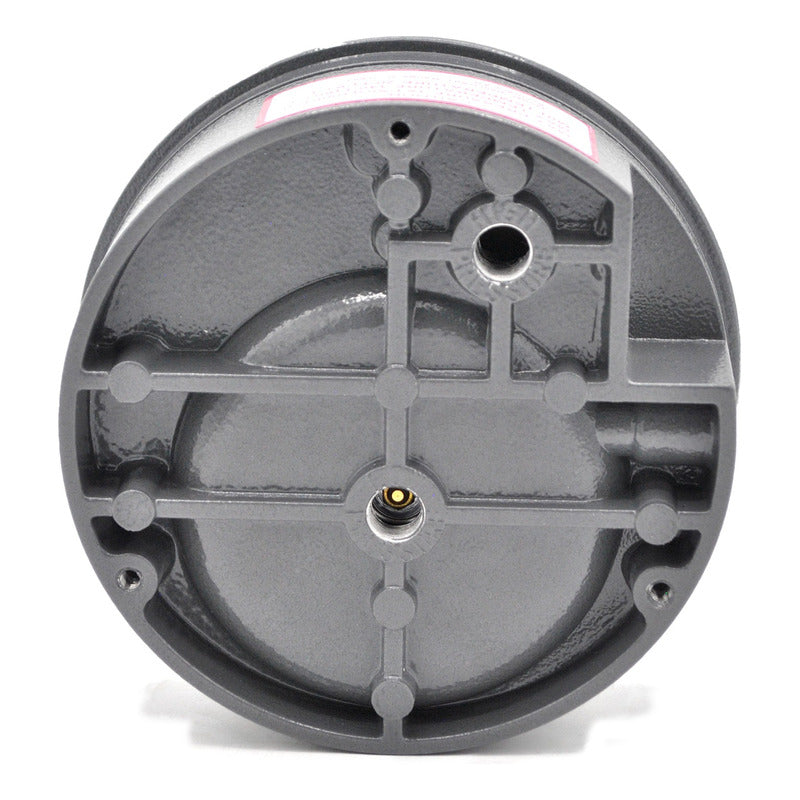

Body made of cast aluminum.
Vertical mounting position
Weight of 500g
Process temperature: -7 to 60ºC
Accuracy: ± 4.0%

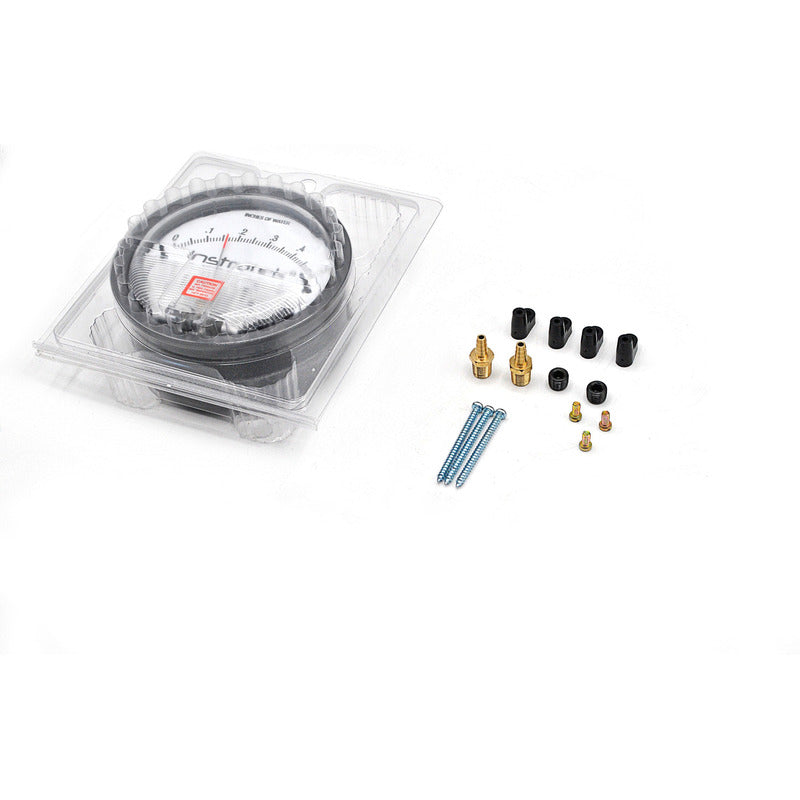

Includes: Two 1/8" NPT plugs for duplicate pressure stops, two 1/8" pipe thread to rubber adapters, and four flush mount adapters with screws.
