Description
Macro drinking water meter, Woltman turbine type, with 2.5" (65 mm) pipe connections, is constructed of cast iron with blue epoxy coating, has a hermetic register, magnetic transmission and pulse emitting cable.
TECHNICAL DETAILS:
Metrological class: B
Accuracy: +/- 2%.
Working Pressure: 1.6 Mpa.
Its flanges comply with ANSI class 125 standard.
It has a pulse emitter cable (100 L/pulse; 1000 L/pulse)
Maximum temperature 90°C

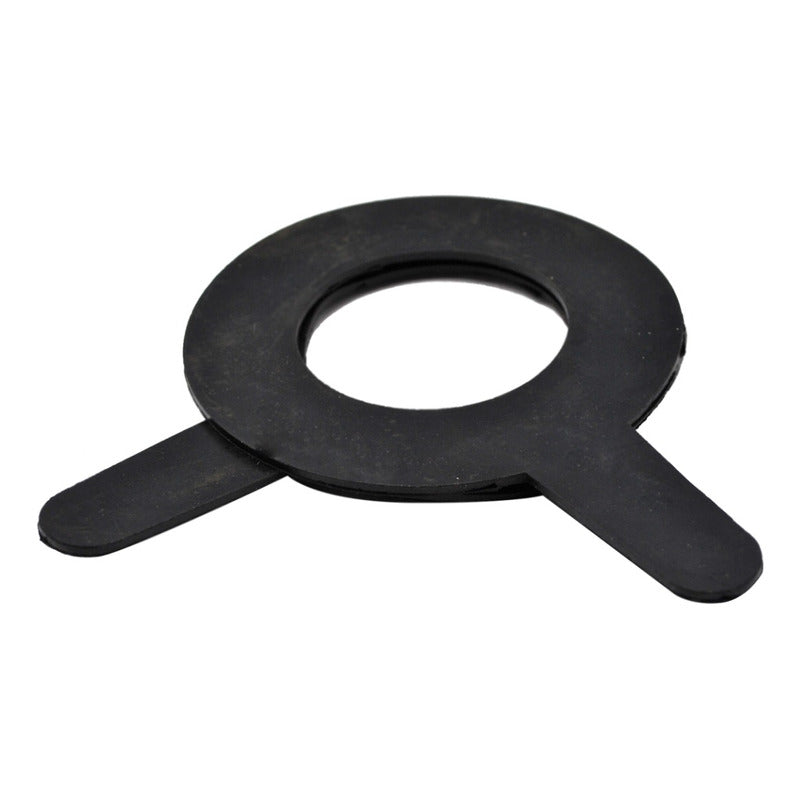

*Includes gasket set*
OTHER MEASURES AVAILABLE:
Cold water:
WDN50 (2")
WDN65 (2.5")
WDN80 (3")
WDN100 (4")
WDN150 (6")
WDN200 (8")
Hot water
WHDN50 (2")
WHDN80 (3")
SHIPPING POLICIES
If you purchase the product before 1:00 pm, it will be shipped the same day. Otherwise the shipment would be made the next day (as long as it is a business day).
MANUFACTURING AND SPECIAL DESIGNS
Ask our executives about special fabrications (print your logo on the cover, special materials or connections, etc.)
