Description

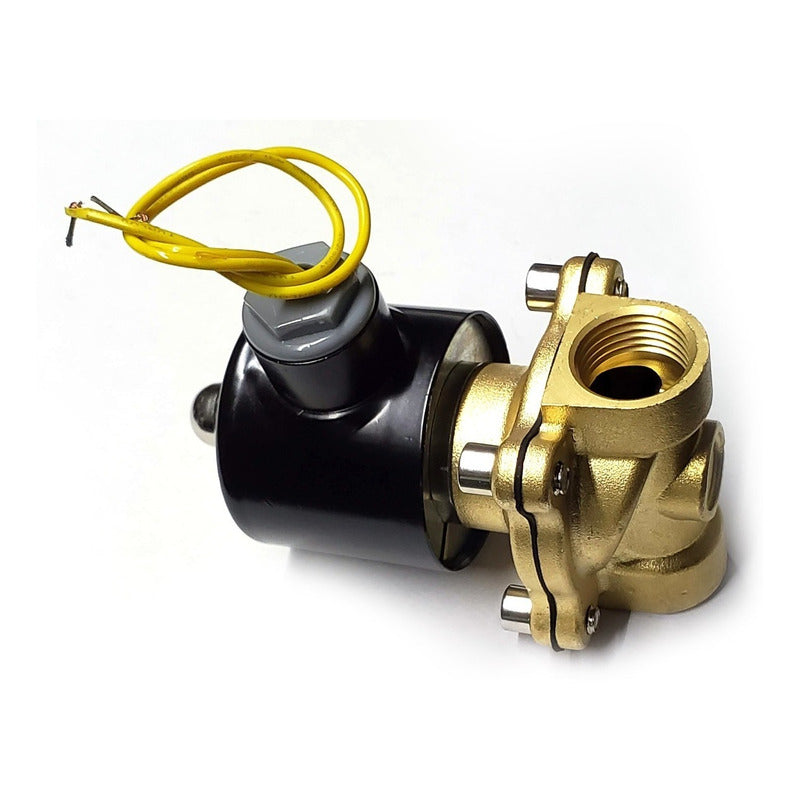

Normally closed solenoid valve, also known as electro-valve.
Brass body and 1/2" NPT process connection. Eliminates the need for a person to operate the valve manually. Operates using an electromagnetic solenoid coil to change the state from normally closed to open.
When the coil is energized, the valve is opened by the electromagnetic force produced by the pump.

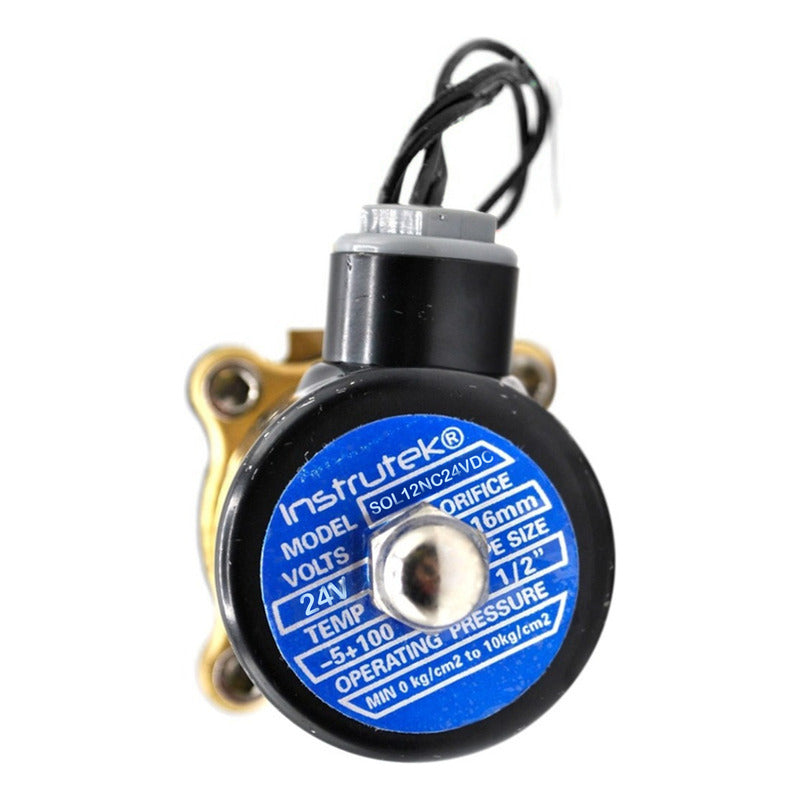

Working voltage: 24V

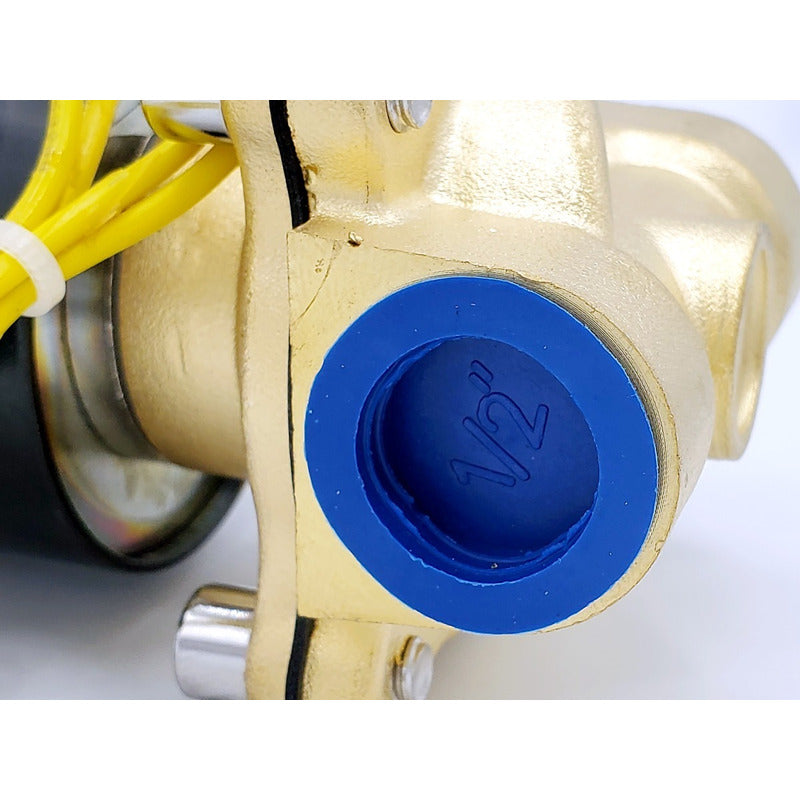

Process connection: 1/2" NPT
Type: Normally Closed (NC)
Positions: 2 positions - 2 ports
Working fluids: water, air, gas and low viscosity fluids Body: Brass
Working temperature: -5 to 80 ºC
Pressure range: 0 to 145 psi (0 to 10 kg/cm2)
Power: 2 W
Hole diameter: 15 mm
