Description
This meter adopts a large LCD screen measuring 55x55 mm, which is divided into two readings: the main one, which displays the current pressure, and the auxiliary one, which can display the temperature, maximum or minimum peak, among other functions.
It displays real-time pressure, at the same time it can display temperature, maximum and minimum value of reference data.
It has 8 preset pressure units and 5 programmable functions, as well as buttons to turn the device on and off, a function button capable of changing the unit of measurement, a button to set the value to 0, and to turn the display backlight on and off.

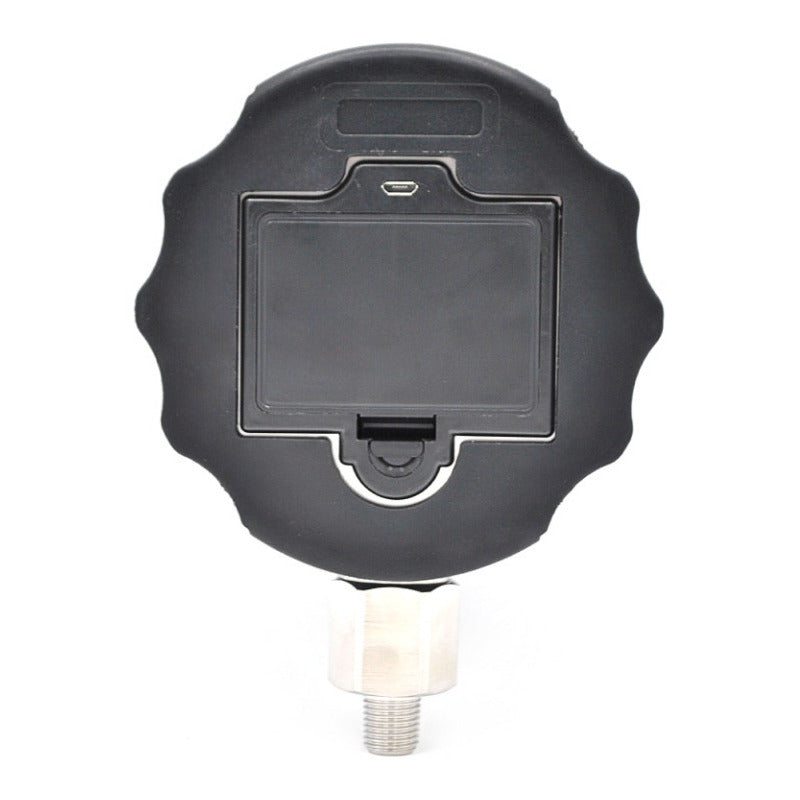

It uses a 3 AA battery power supply and has a micro USB input, and has ultra-low power consumption, lasting approximately 3,600 hours.
It has a high-precision ADC (analog-digital converter) and a high-speed microprocessor, all in digital design, in addition to having good resistance to vibrations generated by the same pressure.
Made of vibration-resistant 304 stainless steel, compatible with gas, liquids, oil and other media non-corrosive to stainless steel.
*100 psi digital pressure gauge with 304 stainless steel case

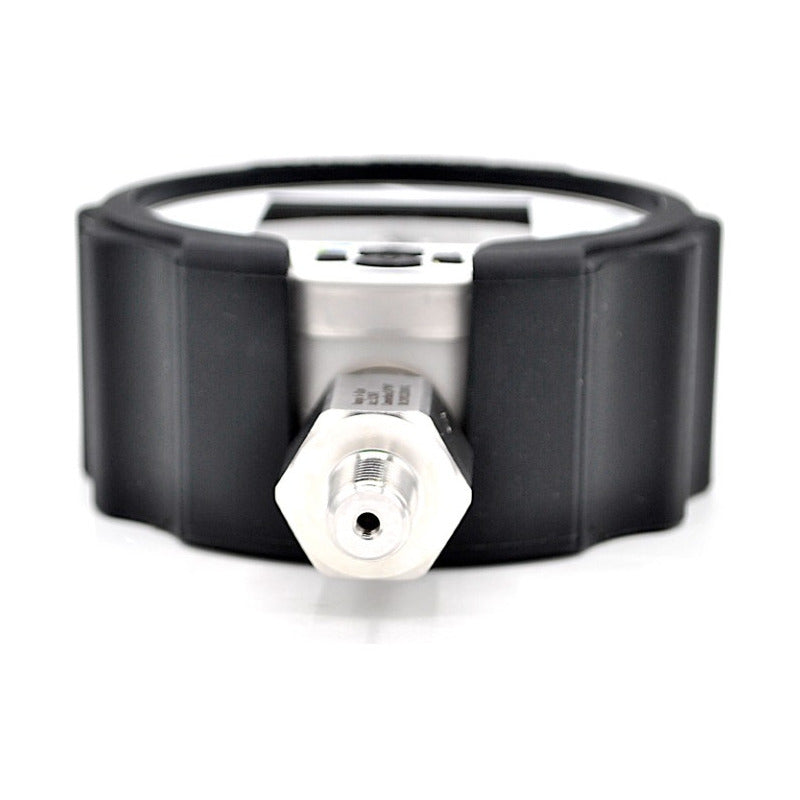

*4" (100mm) dial, 1/4" NPT bottom connection in stainless steel.
*5-digit LCD
*Accuracy of 0.1%
*Compatible with micro USB cable
*Number of batteries required: 3 AA batteries
* 8 Pressure ranges available
********** BATTERIES NOT INCLUDED************
The LCD display has 5 digits. In the 100-digit range, you can select:
Mbar, Bar, Psi, KPa, Mpa, Kgf/cm2, mmHg, mH2O, Torr
