Description

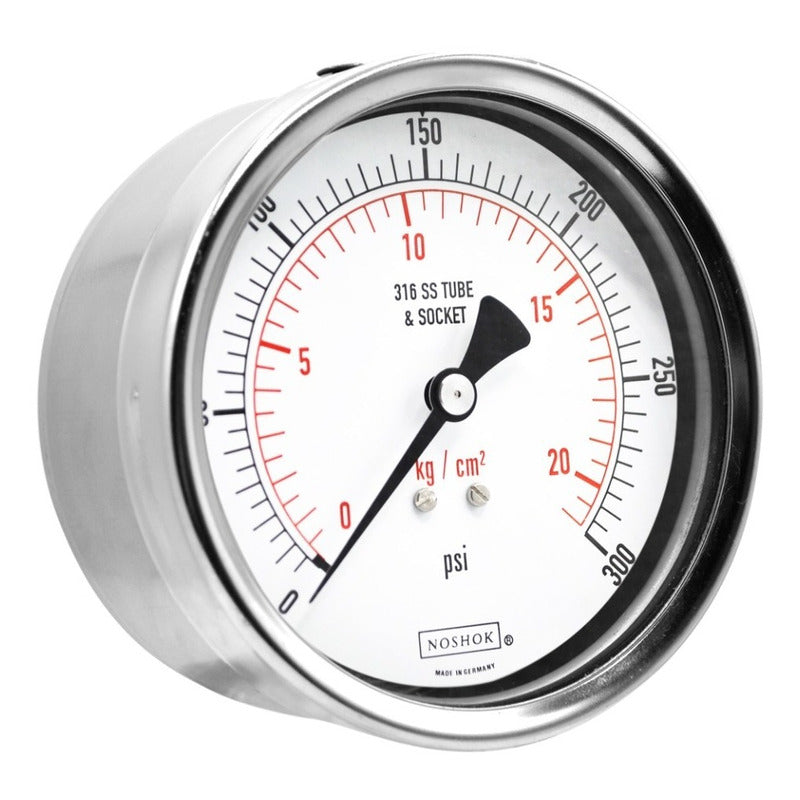

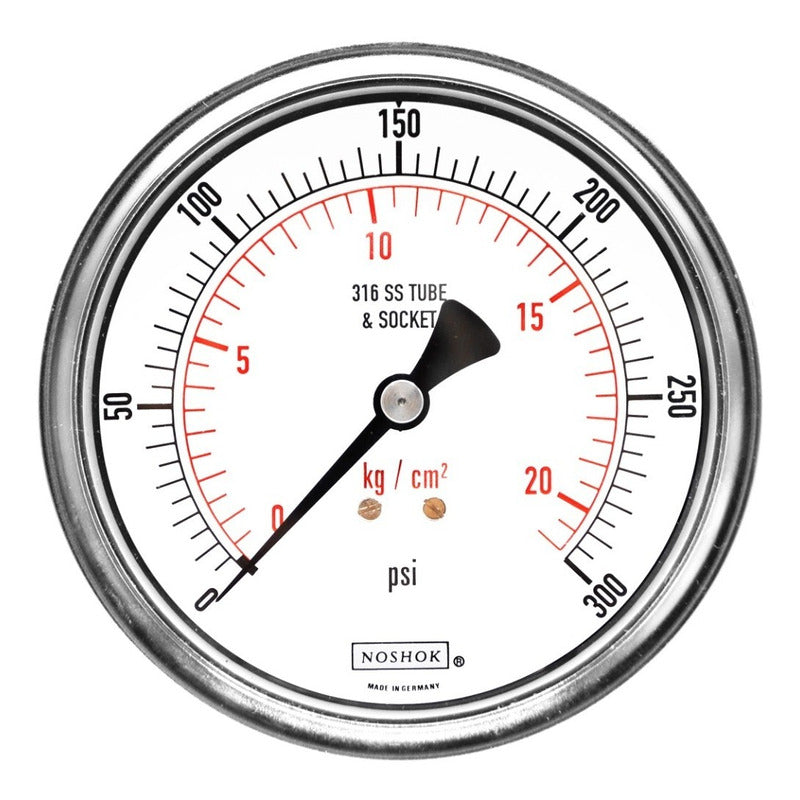

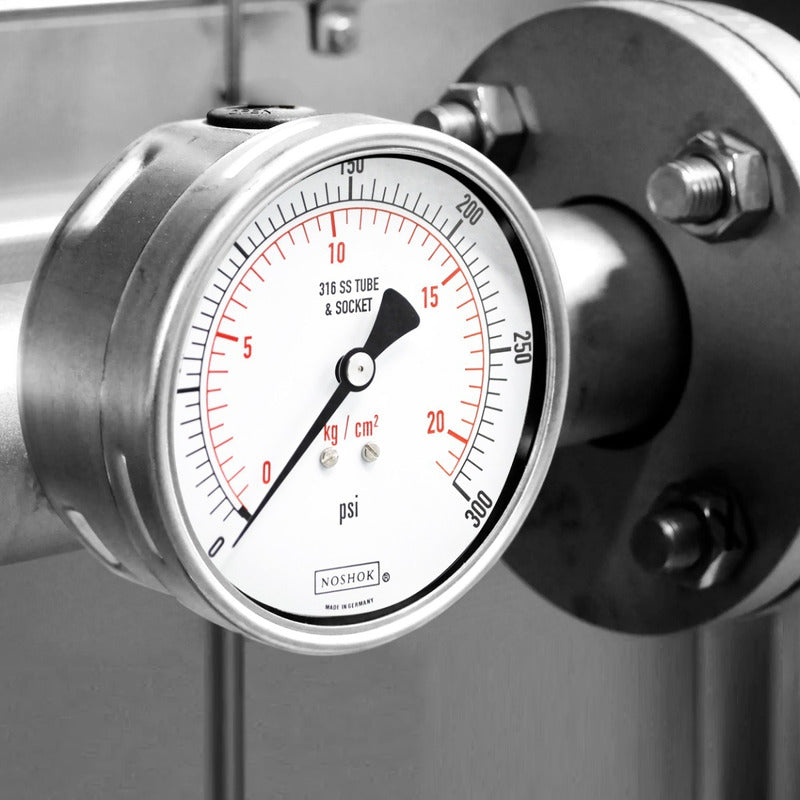

Noshok pressure gauge, dual scale 300 psi (20 kg/cm2)
This pressure gauge is used in the petrochemical, metallurgical and pharmaceutical industries where the fluids in the processes require high resistance to corrosion.
Being full of glycerin, damage due to pulsations, vibrations and/or shocks is reduced.
PRODUCT SPECIFICATIONS.
- Range from 0 to 300 psi and from 0 to 20 kg/cm2.
-The case is made of 304 stainless steel.
-4 inch cover.

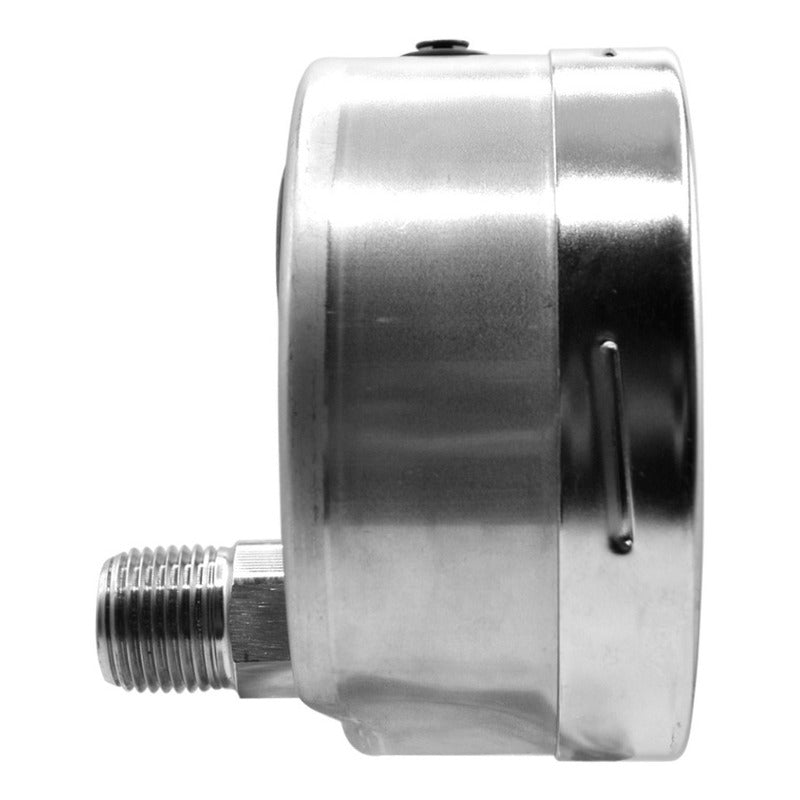

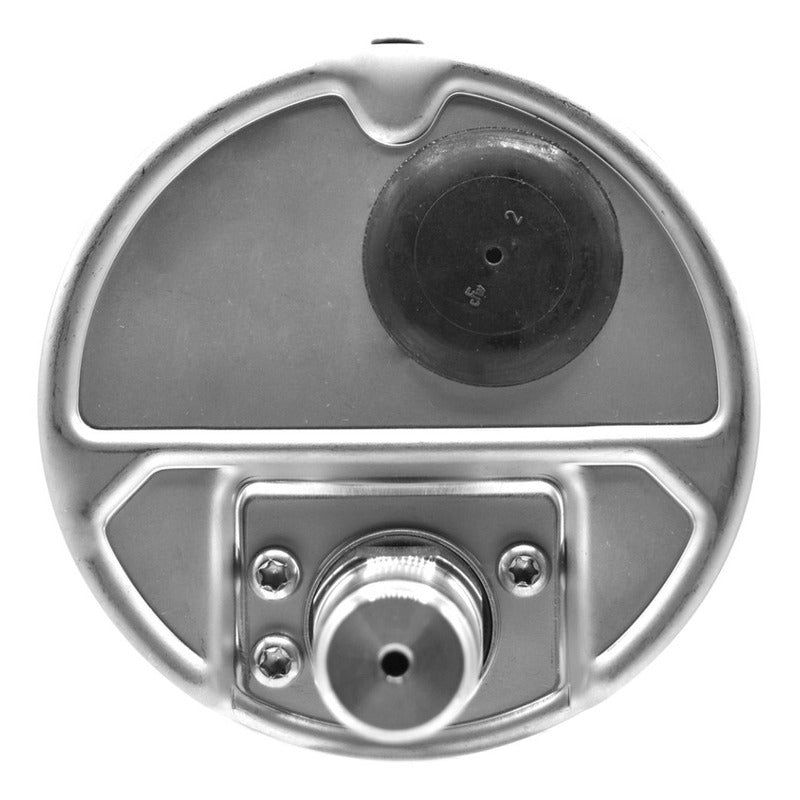

-Rear 1/4" NPT connection.
-Polycarbonate window.
- White background cover made of ABS plastic, resistant to UV rays.
OPERATIONAL SPECIFICATIONS:
1. Working pressure limitations
to. Dynamic pressure.
The working pressure must be limited to
60% of total range.
b. Static pressure.
Working pressure, where they do not occur
large fluctuations, should be limited to 90%
of the total range.
2. Process temperature
From 0°F to 140°F (-18°C to 60°C).
3. Room temperature
-4°F to 140°F (-20°C to 60°C).
