Description
OF THE PRODUCT

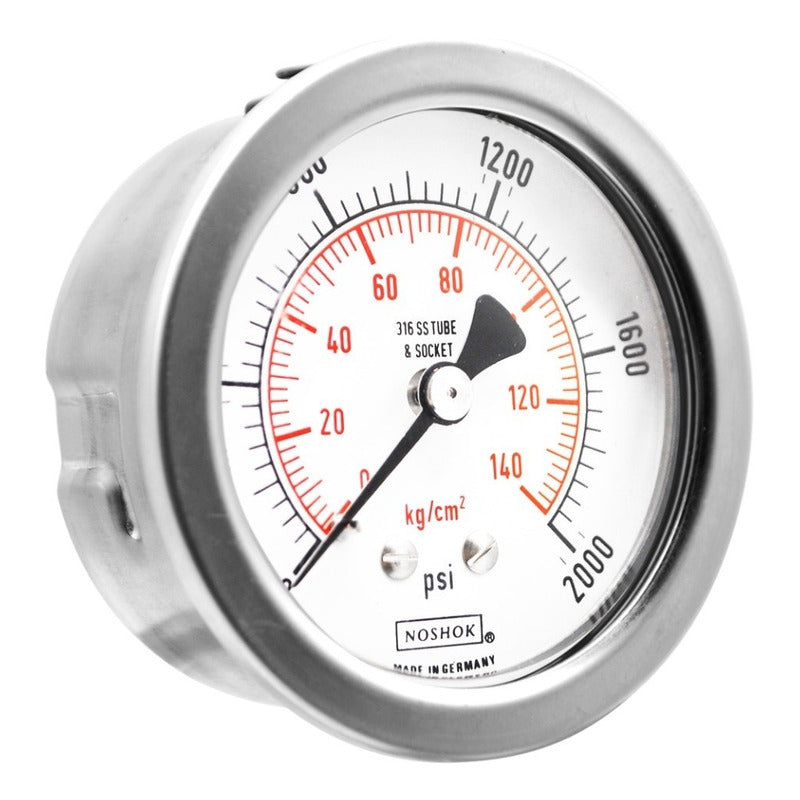

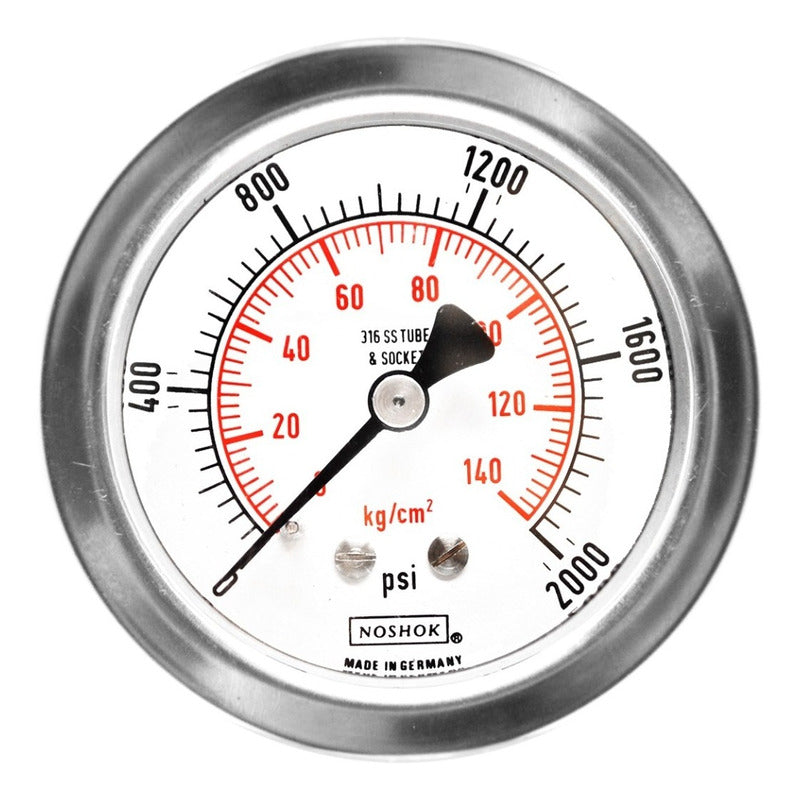

Noshok pressure gauge, dual scale 2000 Psi (140 kg/cm2), can be used in the automotive, construction, hydraulic, pneumatic, electrical generation, transportation and water management industries.

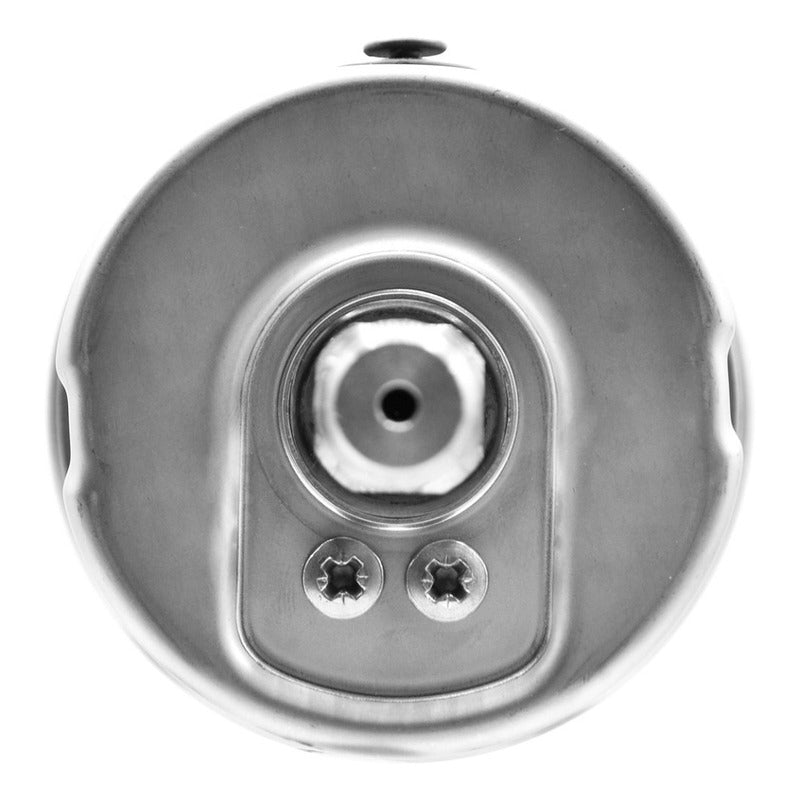

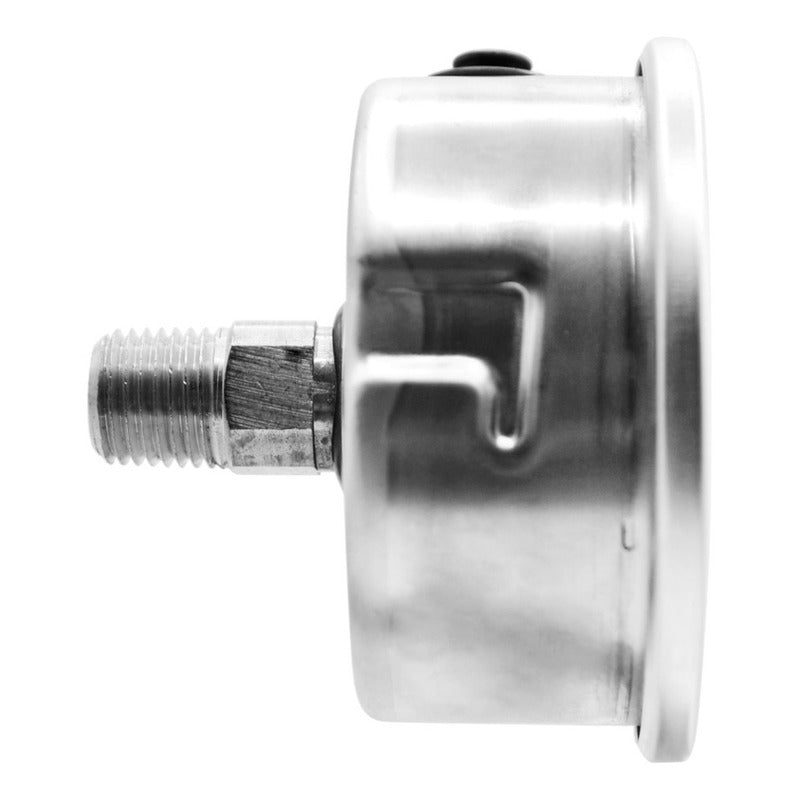

The case is 2.5 inch stainless steel, 1/4" NPT rear connection, polycarbonate window. Mechanism made in Germany made of brass, the Bourdon tube is made of phosphor bronze, precision ± 1.6% of the full scale.
OPERATIONAL SPECIFICATIONS:
1. Working pressure limitations
to. dynamic pressure
The working pressure must be limited to
60% of the total range.
b. Static pressure
Working pressure, where they do not occur
large fluctuations, should be limited to 90%
of the total range.
2. Process temperature
0°F to 140°F (-18°C to 60°C)
3. Room temperature
-4°F to 140°F (-20°C to 60°C)
