Description
OF THE PRODUCT

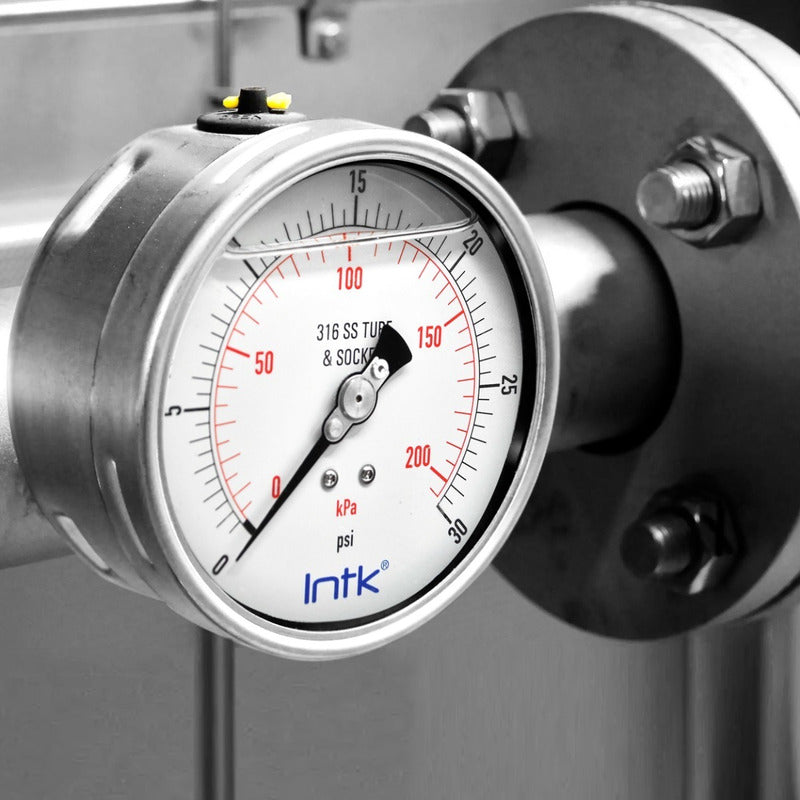

Completely stainless steel pressure gauge with low pressure rear connection, its 4¨ face provides great visibility.
Box, mechanism, tube and process connection with glycerin, dual scale 30 Psi and 200 Kpa, can be used in chemical processing, oil fields, paper plants, agricultural plants, water and wastewater, food handling.

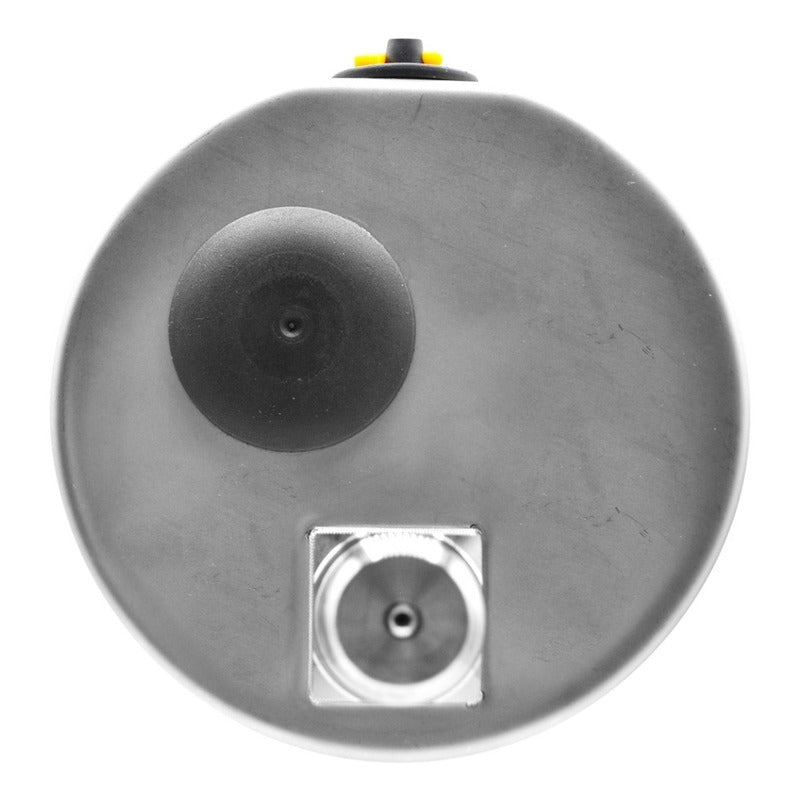

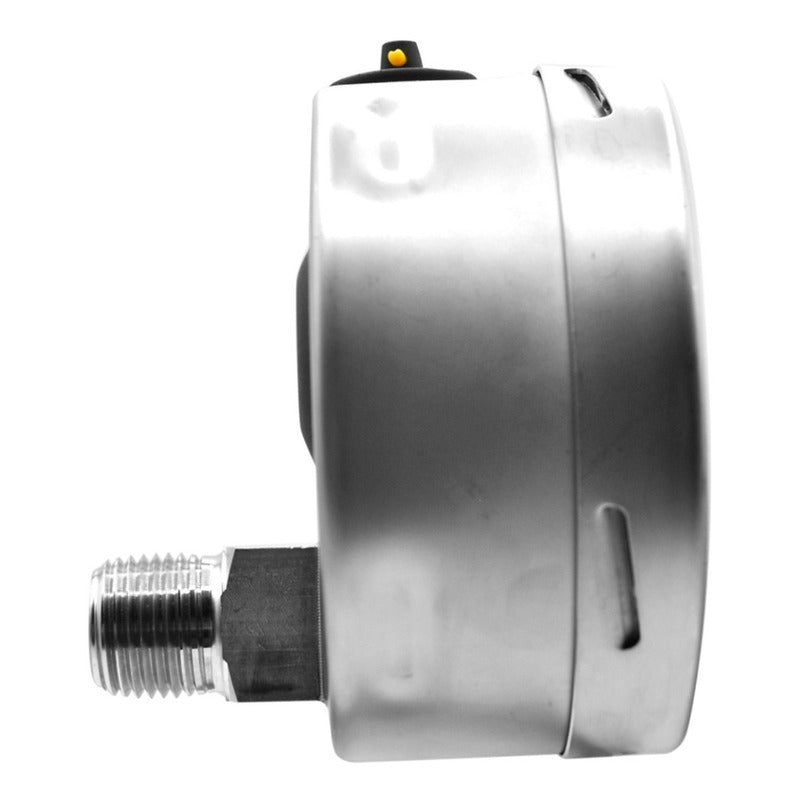

The box is 4-inch stainless steel, 1/2" NPT rear connection, tempered glass window.
Product characteristics :
• 316 stainless steel mechanism and 316L Bourdon tube
Made in Germany.
• Full of glycerin, reducing the effects of loads
of pulsations, vibrations and shocks.
• Face diameters of 2-1/2 and 4 inches – connections
bottom and back.
Product Care:
Working pressure limitations
to. dynamic pressure
The working pressure must be limited to
60% of total range.
b. Static pressure
Working pressure, where they do not occur
large fluctuations, should be limited to 90%
of the total range.
2. Process temperature
0°F to 140°F (-18°C to 60°C)
3. Room temperature
-4°F to 140°F (-20°C to 60°C)
