Description

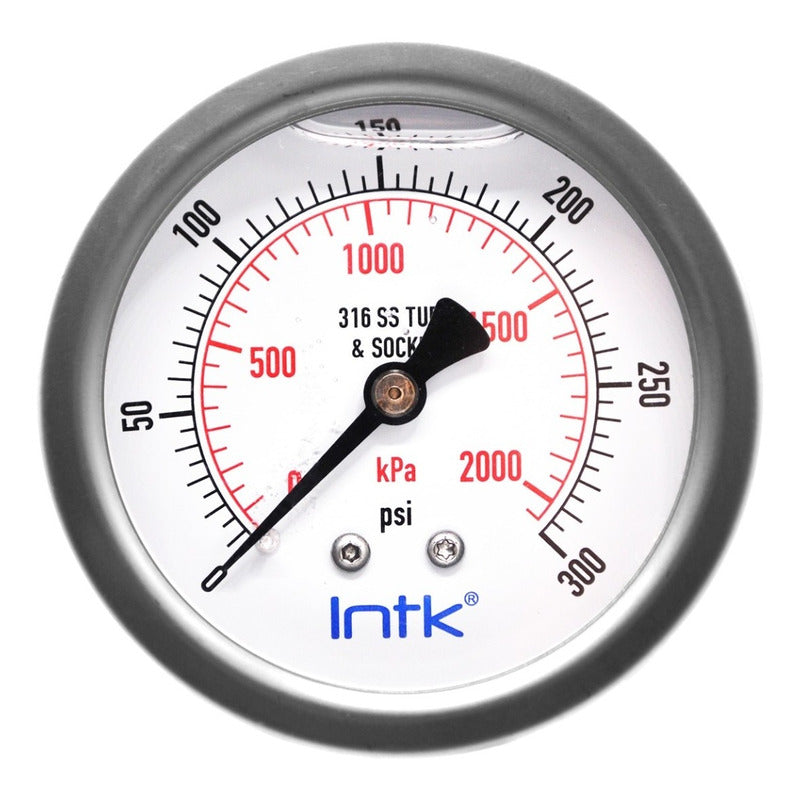

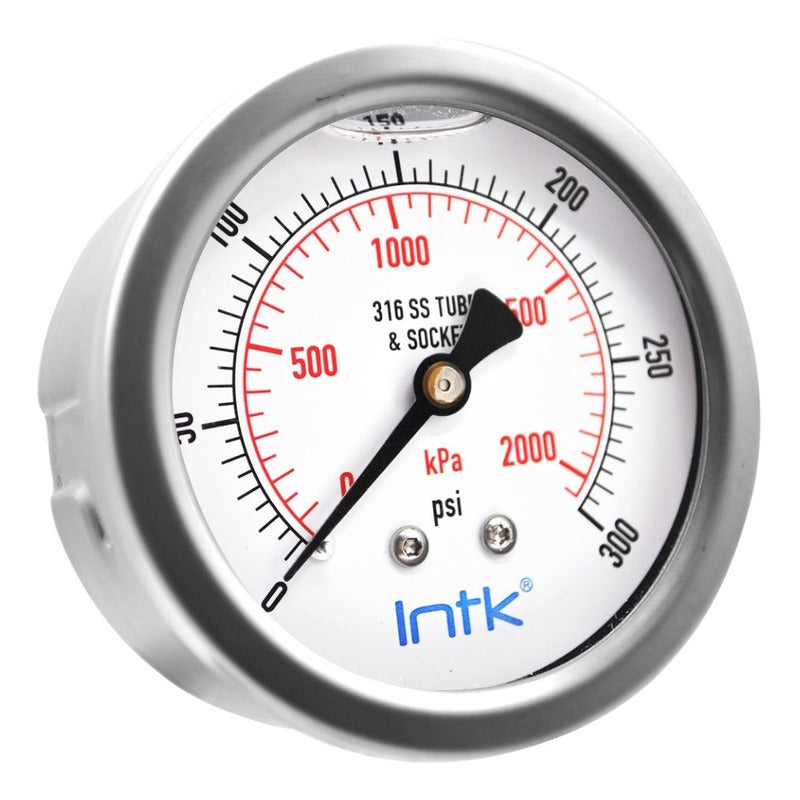

INTK pressure gauge, completely made of stainless steel (case, mechanism, tube and process connection) dual scale 300 psi - 2000 kpa
This pressure gauge is used in the petrochemical, metallurgical and pharmaceutical industries where the fluids in the processes require high resistance to corrosion.
Being full of glycerin, damage due to pulsations, vibrations and/or shocks is reduced.
The box is 4-inch stainless steel, 1/2" NPT rear connection, tempered glass window.

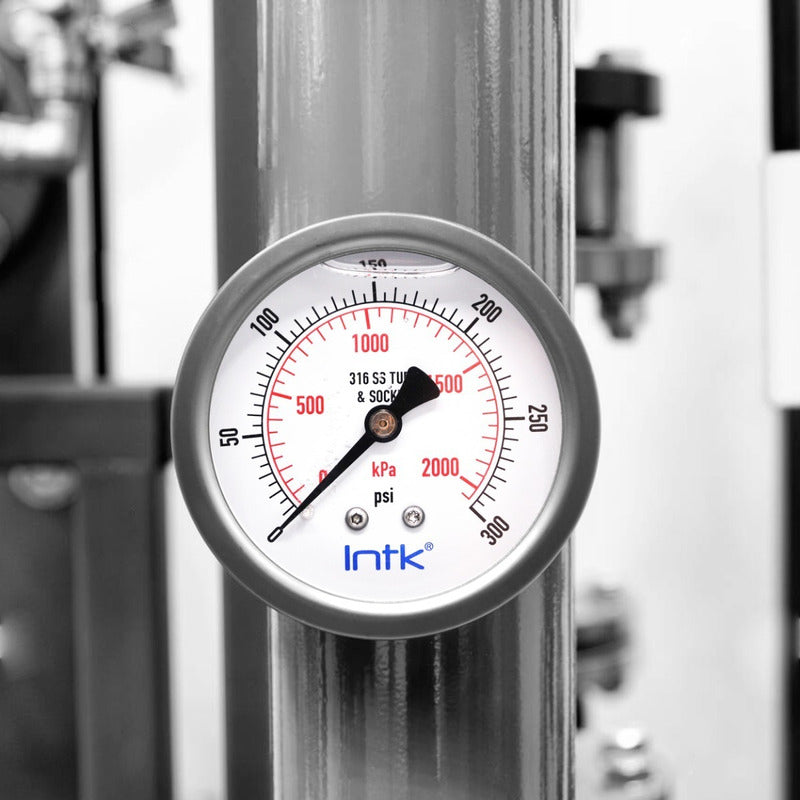

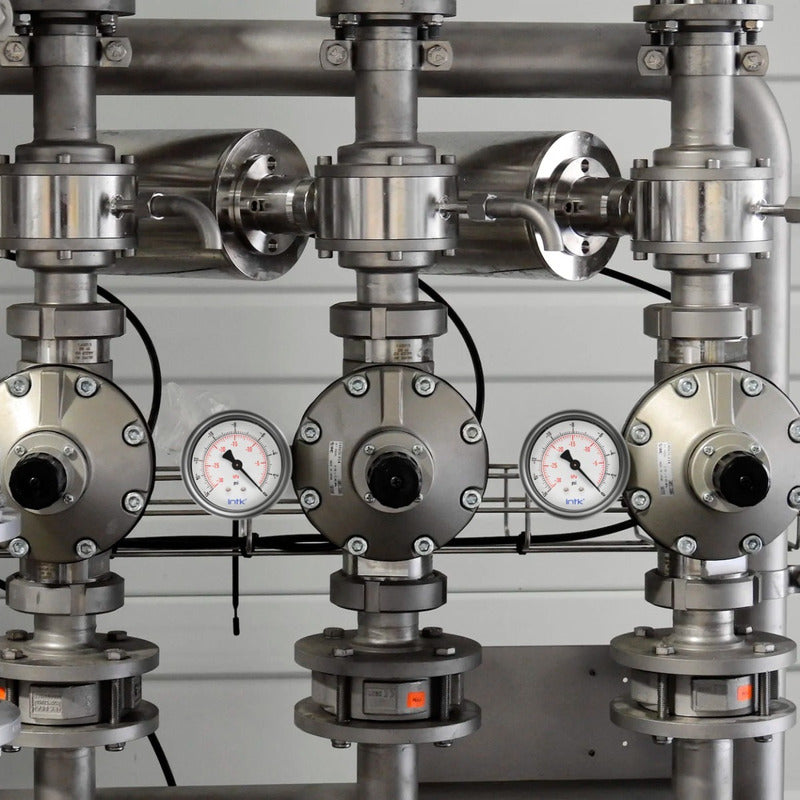

It is used in milking equipment, air pump management, petrochemicals, ships and water management.
PRODUCT SPECIFICATIONS.
-Range from 0 to 300 psi and from 0 to 2000 Kpa
-The case is made of 304 stainless steel.
-Mechanism in 316 stainless steel and 316L Bourdon tube
-2.5 inch face.

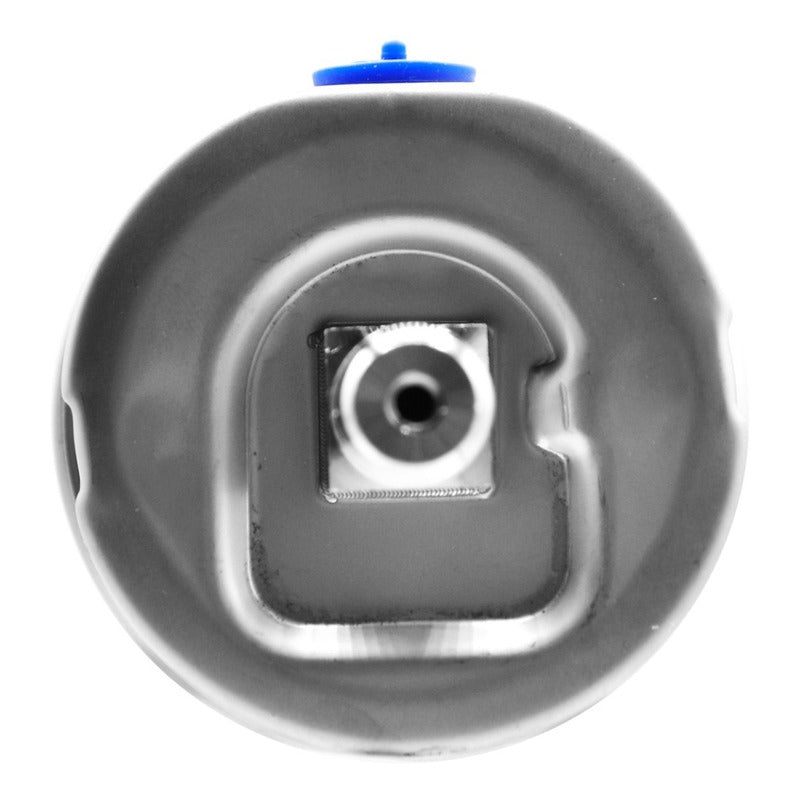

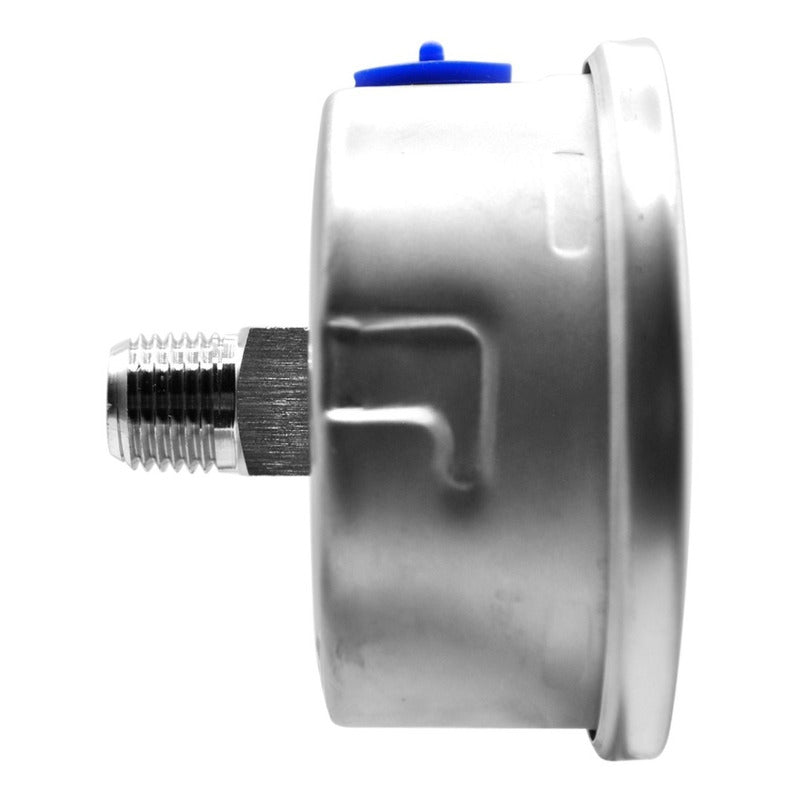

-Rear 1/4" NPT connection.
-Tempered glass window.
-White background cover made of ABS plastic, resistant to UV rays.
OPERATIONAL SPECIFICATIONS:
1. Working pressure limitations
to. Dynamic pressure.
The working pressure must be limited to
60% of total range.
b. Static pressure.
Working pressure, where they do not occur
large fluctuations, should be limited to 90%
of the total range.
2. Process temperature
From 0°F to 140°F (-18°C to 60°C).
3. Room temperature
-4°F to 140°F (-20°C to 60°C).
