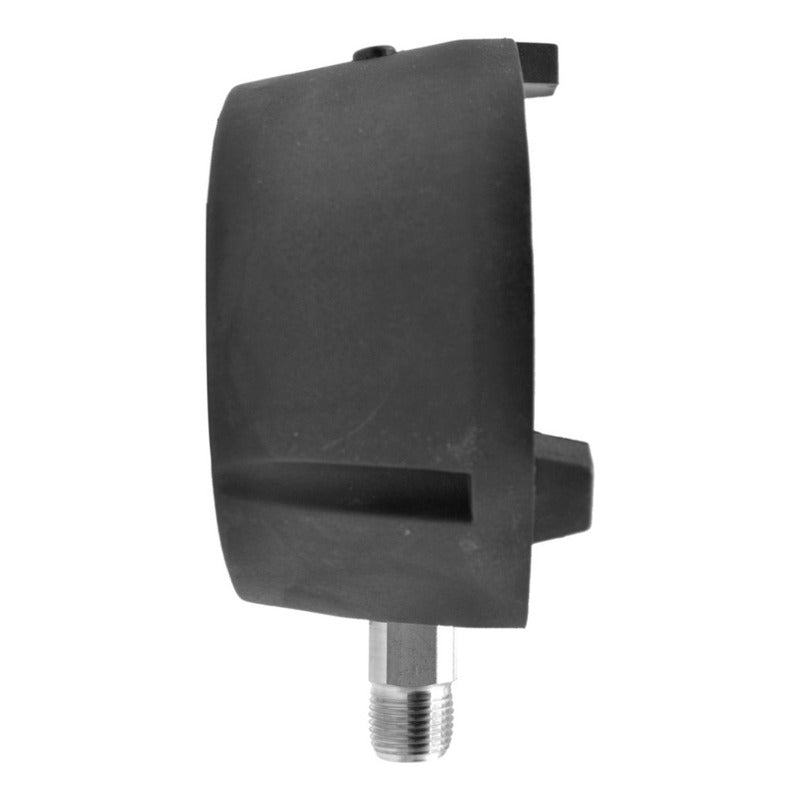

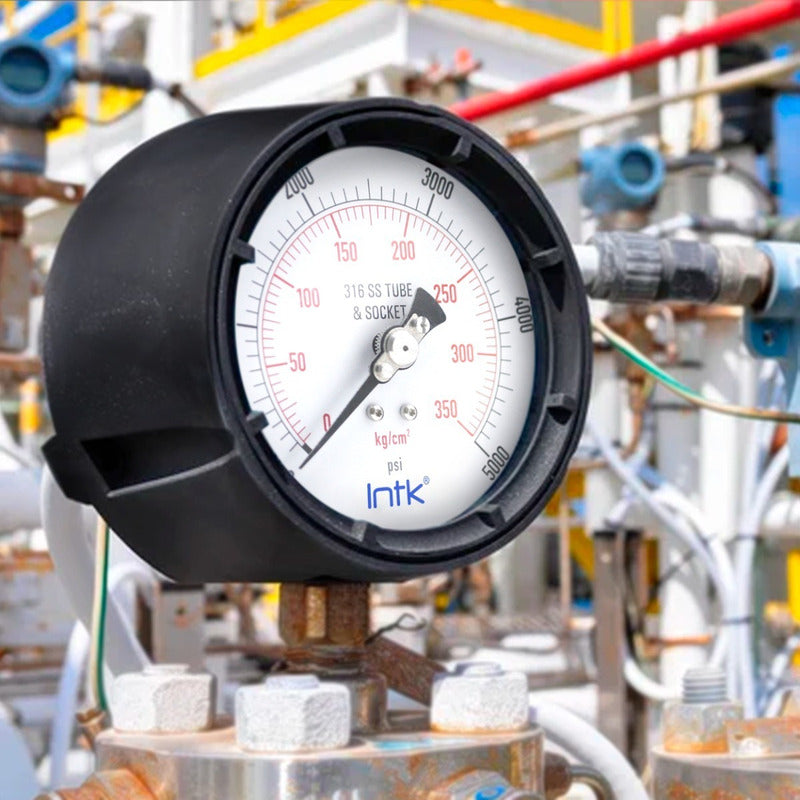

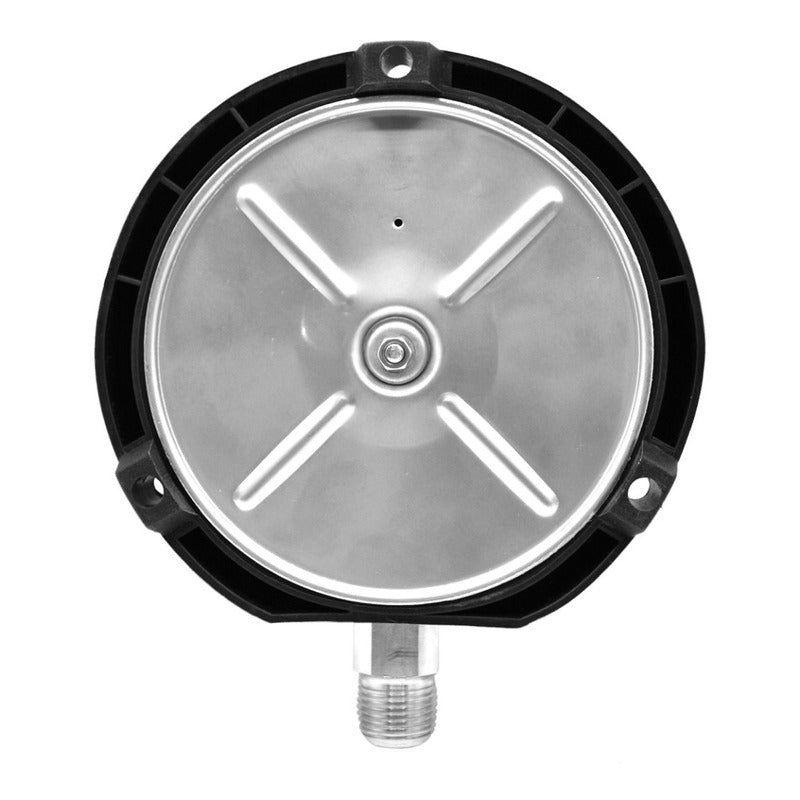

Stainless steel pressure gauge (mechanism, tube and process connection), phenolic resin case with glycerin, dual scale 5000 Psi (2 kg/cm2), precision of ± 0.5% of the full scale, operating temperature from -20 ºC to 80 ºC.
The diameter of the box is 4.5 inches, 1/2" NPT connection at the bottom, safety glass window.
APPLICATIONS:
Refineries, Petrochemicals, Chemical Industry, Power Generation Stations, Paper Mills, Areas where precision, security, legibility and reliability are essential.
OTHER RANKS AVAILABLE:
115.700.60 (60 Psi and 4 kg/cm2)
115,700,100 (100 Psi and 7 kg/cm2)
115,700,160 (160 Psi and 11 kg/cm2)
115,700,200 (200 Psi and 14 kg/cm2)
115.700.230 (230 Psi and 16 kg/cm2)
115.700.350 (350 Psi and 25 kg/cm2)
115,700,400 (400 Psi and 28 kg/cm2)
115,700,600 (600 Psi and 42 kg/cm2)
115.700.1,000 (1,000 Psi and 70 kg/cm2)
115.700.1,500 (1,500 Psi and 105 kg/cm2)
115.700.2,000 (2,000 Psi and 140 kg/cm2)
115.700.3,000 (3,000 Psi and 210 kg/cm2)
115.700.5,000 (5,000 Psi and 350 kg/cm2)
115,700,10,000 (10,000 Psi and 700 kg/cm2)
