Description

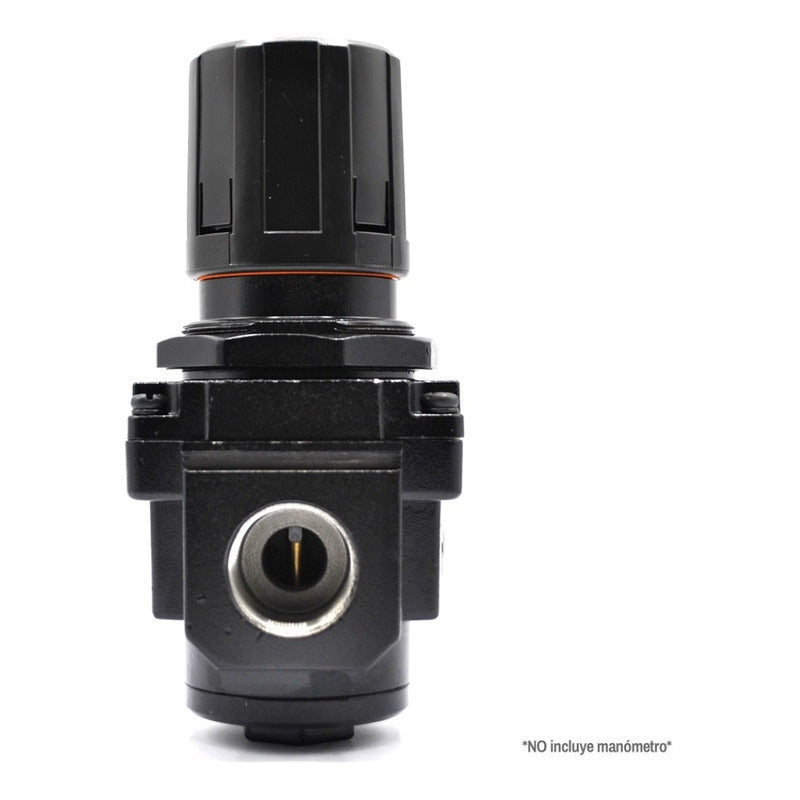

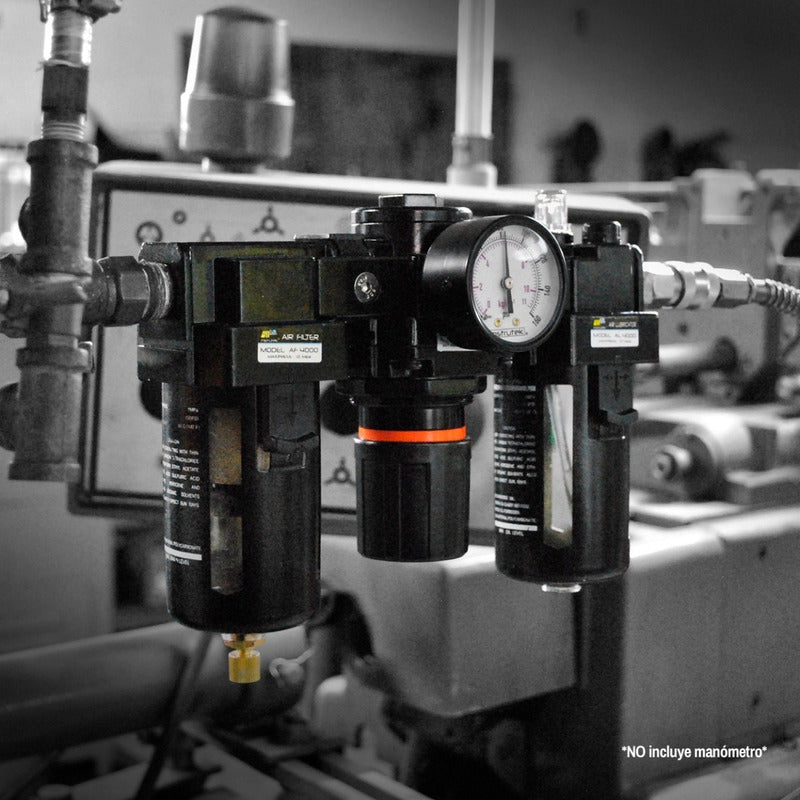

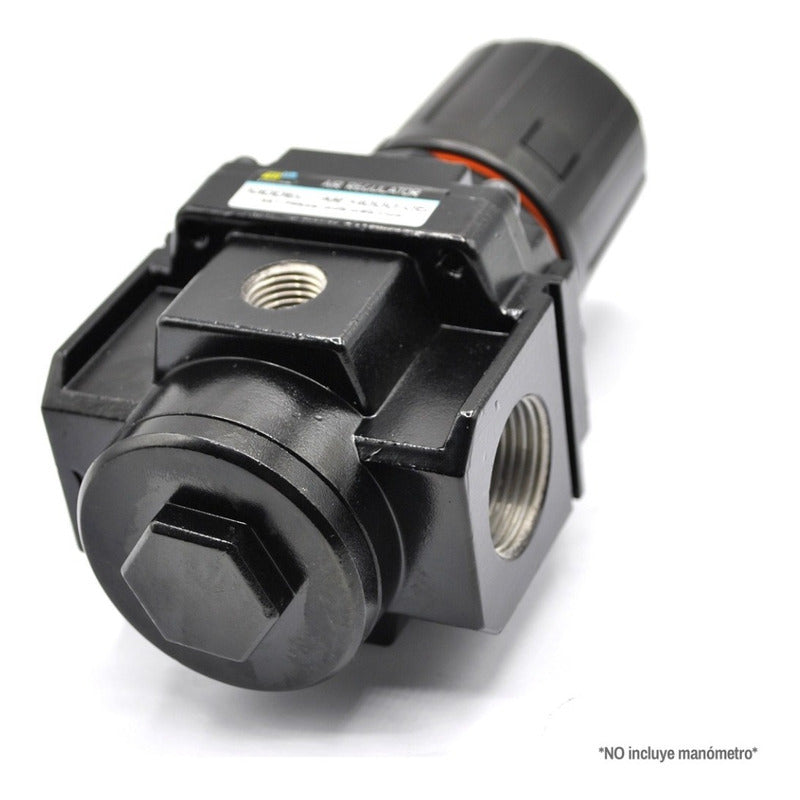

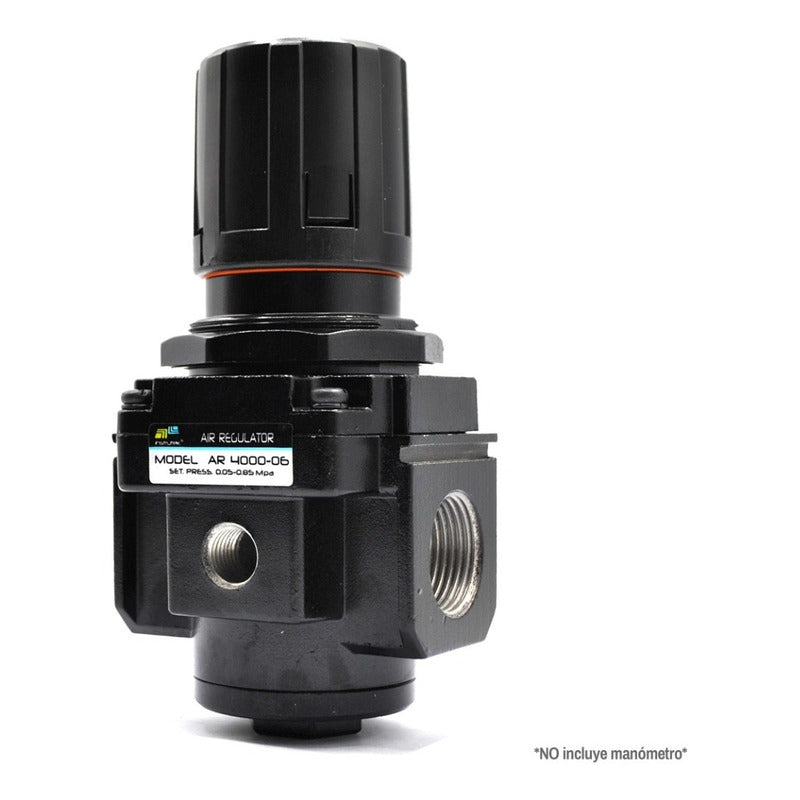

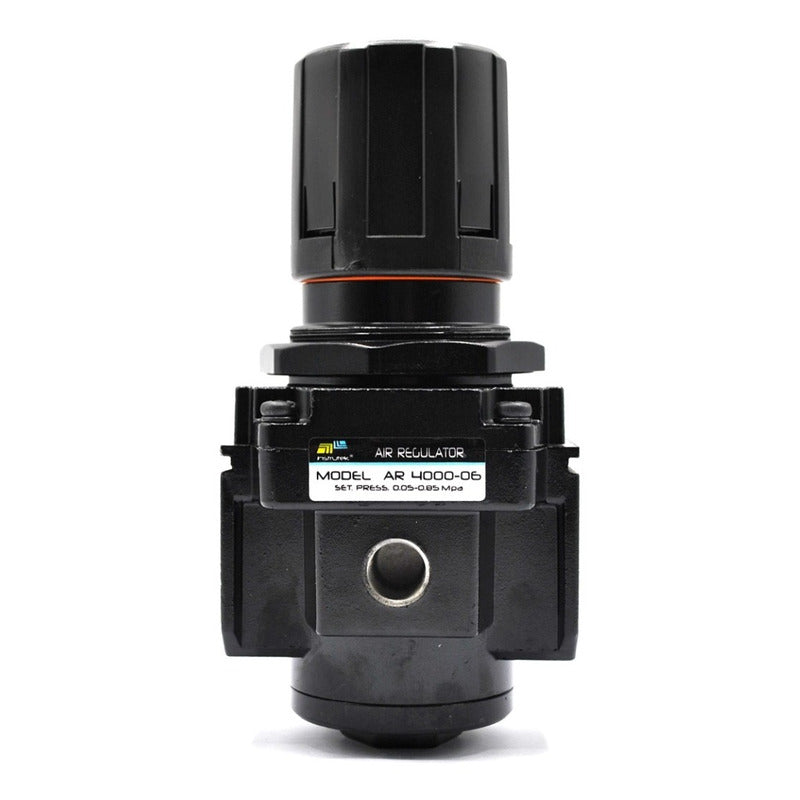

Ideal pressure regulator for working in pneumatic/compressor circuits. Its function is to maintain constant operating pressure despite fluctuations in the inlet pressure line.

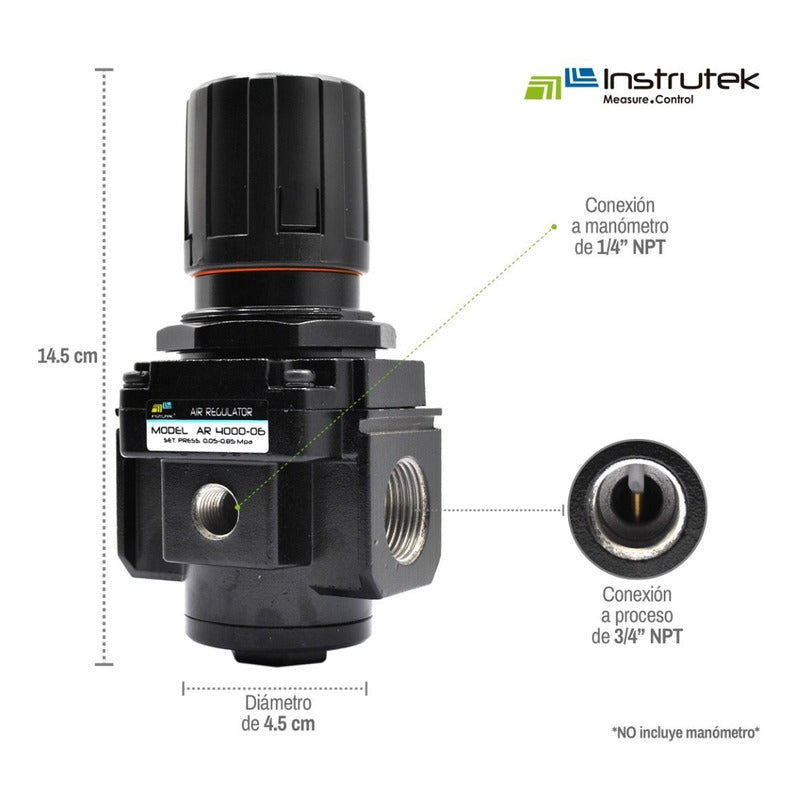

Die-cast aluminum body, 3/4” line connections and 1/4” pressure gauge connection, Maximum pressure supported up to 145 psi (maximum working pressure 120 psi), Ambient and fluid temperature 5º to 60º Celsius.
*NOTE: THE MANOMETER IS NOT INCLUDED.
OTHER MEASURES AVAILABLE:
1/4"
3/8”
1/2"
1"
